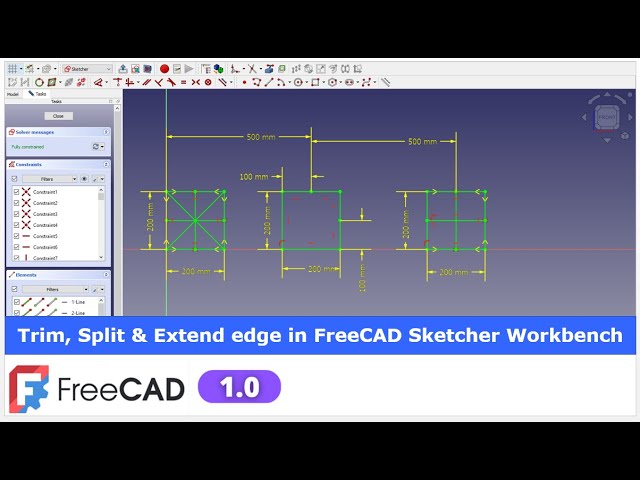

Trim, Split & Extend edge in FreeCAD 1.0 Sketcher Workbench | FreeCAD Tutorial | Mechnexus |
May 16, 2025
#freecad #freecadtutorial #learnFreeAD In this video I have explained Trim, Split & Extend edge in FreeCAD 1.0 Sketcher Workbench. ▶️ Get my Complete FreeCAD Course : From Zero to Expert ! https://ko-fi.com/s/1ab4385434 ▶️ Join my channel membership and keep supporting my work: https://www.youtube.com/channel/UCcn6z2whMaFu-_LDsEXCfVA/join ▶️ Visit my website for more info on FreeCAD-: https://mechnexus.com/ ▶️ Download Source File of Tutorial-: https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus
View Video Transcript
0:00
hello friends welcome to free tutorial
0:02
and in this tutorial we will learn trim
0:04
split and extend age in a freecad
0:08
sketcher workbench so here i am using
0:12
freecad version 1.0 so you must have at
0:15
least 1.0 or higher version of a freecad
0:20
now i will create a new file and create
0:23
a body
0:25
if you want to learn free cad from the
0:28
scratch then you can buy my complete
0:30
free course from zero to expert this
0:33
course also available on udemy but uh
0:37
problem is that uh udmi only give me the
0:41
37% of a core selling you can see here
0:44
user had paid $15 but i have only got $5
0:52
if you wanted to see the review of my
0:54
course you can go to the udemy and
0:58
search for the free cad and you will see
1:01
my course complete free cad course from
1:03
zero to expert and this course is took
1:06
by the more than 2,000 students and i
1:10
have got the rating of
1:13
4.1 for the demo lectures you can expand
1:16
it and uh see the demo lectures and the
1:21
course structure but i will uh request
1:24
you if you found my course interesting
1:27
and uh reviews of the other student on
1:31
udemy then i would request you to buy my
1:36
course from the my coffee shops because
1:41
if you buy from here it will help me a
1:44
lot so once you buy my course you will
1:48
be redirected to the google drive and
1:50
here is the my course complete free
1:54
course from zero to expert go inside and
1:58
uh the sections i have shown you on my
2:03
kofi shop page so exactly same lectures
2:08
under the section is created for example
2:12
section one is a introductions to
2:14
freecad 1.0 and what is new in a freead
2:18
1.0 so if you go to the section one so
2:22
there are the 18 lectures and if you go
2:25
inside of the sections one you will find
2:28
the 18 lecture total and once you go to
2:32
the lecture one you will find a video
2:34
file which you can download to your
2:38
system and you can watch it and this
2:42
course is updated on a equal interval of
2:45
a time once the new feature receives
2:48
came and uh once you purchase the course
2:51
you have the lifetime access to the
2:54
course and in the case of any doubt any
2:57
query you can mail me at
3:02
adminxus.com you can find my course link
3:05
on my youtube channel you can see the
3:08
course link and uh you can also find my
3:11
kofi course page link on uh pin comments
3:16
and video descriptions and here i will
3:19
on my origin plane and i will uh select
3:22
this exit plane and click on the sketch
3:25
and now i will go to the model tab and
3:28
hide this origin plane now here i will
3:30
uh simple create a rectangle
3:35
and let's uh give the
3:39
dimensions so i will make it a square by
3:44
giving the 200 horizontal dimensions and
3:48
uh 200 vertical dimensions now here you
3:52
can do also one thing you can uh make
3:55
this line and this line horizontal and
3:58
vertical with a equal constraint now to
4:02
understand the trim option which is the
4:05
first options and its shortcut is a g
4:08
comma t and after that we will also
4:10
learn the split and extend so i will
4:14
select a polyline tool and i will create
4:17
a
4:18
zigzag profile inside of this
4:22
uh 200 by 200
4:25
square and let's make
4:29
it overlap the sketch one by
4:45
one so this is a very zigzag
4:48
profile and let's use the trim edge so
4:53
once you click on the tree image you can
4:55
see that uh on my mouse pointer trim age
4:59
icon tool is active and now i will uh
5:03
click on the age which i wanted to trim
5:05
so if you see here if i select this age
5:08
two points in a green get highlighted
5:10
which means that once you click it this
5:13
will be get trimmed so here you can see
5:15
that this got trimmed and
5:18
uh select this one and trim it this one
5:23
this
5:24
one this one so you want to trim the
5:27
multiple edges so here a power trim
5:32
option is also available so all you have
5:35
to click on the trim age and press the
5:38
control key and uh move your mouse
5:42
pointer so as you move your mouse
5:44
pointer so you can see that uh it
5:47
automatically trimming it
5:49
so this is the new feature which is
5:51
added in 1.0 so you can see that instead
5:55
of selecting one by
5:57
line i can save my lots of time with
6:00
this power
6:02
trim so if you have a use
6:07
the solid works then uh this option is
6:10
also available in that uh
6:13
software known as a power trim but uh
6:16
this is a very cool feature of uh trim
6:21
options so here everything is got trims
6:25
now we will now understand the split
6:31
option in a frecad sketcher
6:34
workbench so here we will take the same
6:37
option of 200 and by 200 square so i
6:41
wanted to split this edge and uh so that
6:45
i can give the 100 mm dimension so here
6:49
click on the split edge and i wanted to
6:53
split this vertical edge click on it so
6:55
you can see that a point is created and
6:58
now you can see that uh this point is
7:02
unconstrained and this line was a fully
7:05
constrained because it was a single
7:07
entity but now i split it so it need a
7:10
dimensions so this is the 200 so
7:14
midpoint will be the 100 so here i will
7:18
select
7:19
uh dimension and provide the 100 now i
7:24
wanted to split this horizontal
7:26
edge so i will uh select the option of a
7:33
split edge and uh you can also use this
7:36
shortcut g comm z and here i will split
7:41
it so where you
7:43
click split is created for example if i
7:46
click here so split is get created but
7:52
now if you see that uh it shows in a
7:55
green color so you just drag this
7:59
point anywhere so you will see that it
8:01
is unconstrained and
8:04
now here i will again select the
8:07
horizontal
8:09
dimension and uh give it a 100 so this
8:13
is the very simple example i have took
8:16
and i have split the age now let's uh
8:21
understand the third options which is
8:24
extend age so for the extendage we will
8:28
uh draw the two
8:31
line one will pass through this point
8:35
and let's select
8:37
uh same point of split and create this
8:41
and now i wanted to extend this
8:45
line to this vertical line and this line
8:49
to this horizontal line so here is
8:52
option of extendage and shortcut is a g
8:56
comma q select on it and now click on
8:59
the this vertical line and drag the
9:03
mouse so you can see that once you click
9:05
on the line it detected that you wanted
9:08
to extend this line and now where i
9:11
wanted to extend is to this horizontal
9:13
line so click on it so you can see that
9:15
uh it it got extended and coincidence
9:20
constraint is also got added now select
9:23
this line and extend to this so here is
9:27
some conflict so go here so here is a
9:31
redundant constraint 19 scroll down and
9:35
make it a deactive so you can see that
9:39
uh in this tutorial we have learned the
9:41
trim split edges and extend edges so
9:45
this is the very cool feature of a free
9:48
cat especially with a trim tool where
9:51
you can press control key and drag your
9:54
mouse and you can trim the multiple
9:57
entities at a time so this is all about
10:00
this tutorial how to trim split and
10:04
extend edges in a free sketcher
10:07
workbench thank you for watching and
10:09
thank you for your valuable
10:12
time
