Socket Form Roller with FreeCAD Part Design Workbench | FreeCAD Tutorial | Mechnexus |
May 16, 2025
#freecad #freecadtutorial #learnFreeAD In this video I have explained How to Socket Form Roller with FreeCAD Part Design Workbench. ▶️ Get my Complete FreeCAD Course : From Zero to Expert ! https://ko-fi.com/s/1ab4385434 ▶️ Join my channel membership and keep supporting my work: https://www.youtube.com/channel/UCcn6z2whMaFu-_LDsEXCfVA/join ▶️ Visit my website for more info on FreeCAD-: https://mechnexus.com/ ▶️ Download Source File of Tutorial-: https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus
View Video Transcript
0:00
friend welcome to Fria tutorial and in
0:02

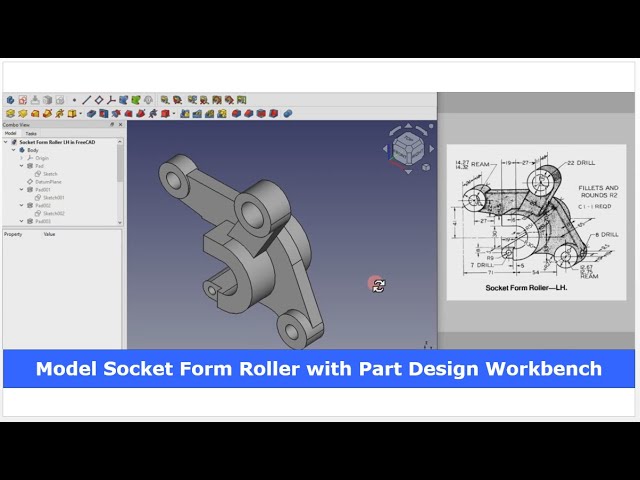

this tutorial we will model this uh
0:05
socket former roller LH and you can see
0:09
that I have already modeled it and I
0:11
will show you from the scratch how you
0:13
can model this part in free if you want
0:16
to learn free from the scratch then you
0:19
can buy my complete free course from
0:22
zero to expert this course also
0:25
available on Udemy but uh problem is
0:28
that uh UDMI only give me the
0:32
37% of a course selling you can see here
0:35
user had paid $15 but I have only got $5
0:43
if you wanted to see the review of my
0:45
course you can go to the Udemy and s
0:48
search for the free CAD and you will see
0:52
my course complete free course from zero
0:54
to expert and this course is took by the
0:58
more than 2,000 students and I have got
1:02
the rating of
1:04
4.1 for the demo lectures you can expand
1:07
it and uh see the demo lectures and the
1:12
course structure but I will request you
1:15
if you found my course interesting and
1:19
uh reviews of the other student on Udemy
1:23
then I would request you to buy my
1:27
course from the my coffee shops because
1:32
if you buy from here it will help me a
1:35
lot so once you buy my course you will
1:38
be redirected to the Google drive and
1:41
here is the my course complete free
1:45
course from zero to expert go inside and
1:49
uh the sections I have shown you on my
1:53
Kofi shop page so exactly same lectures
1:59
under the section is created for example
2:03
section one is a introductions to free
2:06
1.0 and what is new in a free 1.0 so if
2:10
you go to the section one so there are
2:13
the 18 lectures and if you go inside of
2:17
the sections one you will find the 18
2:20
lecture total and once you go to the
2:23
lecture one you will find a video file
2:26
which you can download to your system
2:29
and you can watch it and this course is
2:34
updated on a equal interval of a time
2:37
once the new feature receives came and
2:40
uh once you purchase the course you have
2:43
the lifetime access to the course and in
2:46
the case of any doubt any query you can
2:49
mail me at
2:53
adminxus.com you can find my course link
2:56
on my YouTube channel you can see the
2:59
course link and uh you can also find my
3:02
Kofi course page link on uh pin comments
3:07
and uh video descriptions so I will uh
3:10
close this file and create a new
3:12
file so here I have created a new file
3:16
first thing I will do is to insert the
3:18
body and then I will uh press the space
3:22
bar and on my origin plane and I will
3:26
select this front plane to draw this
3:28
profile so click on the sketch and I
3:33
will hide my origin
3:35
plane and now here I will uh create a
3:40
two
3:43
circle and uh inner one is of 30 select
3:48
diameter inner one is of 30 and uh outer
3:52
one is a 60
3:58
and we will uh draw the
4:01
tangent
4:04
line so we will select line
4:12
tool and create a rough profile similar
4:16
way we will do in a bottom side select
4:19
the line
4:24
tool and
4:27
make it
4:28
tangent and made it uh horizontal and
4:33
this one is of
4:35
vertical now we will use the trim tool
4:40
to trim the unnecessary
4:48
geometry and
4:50
now we will uh constrain it select
4:53
horizontal
4:56
dimension and uh give it
5:01
24 select horizontal dimension and give
5:05
it a
5:07
90 and
5:10
here there is no tangency so we will
5:13
give the
5:15
tangency so this is our uh fully
5:18
constrained
5:19
profile and now uh we will close it
5:23
press zero for
5:25
isometric and we will select
5:29
it sketch and click on extrude and from
5:33
here we will see it
5:35
reverse and uh give the distance 65
5:39
mm now uh we will insert a datam plane
5:43
at a distance of 31
5:49
so we will select the face and click on
5:51
det plane and in a Z direction we will
5:54
give the 31 and we will change the
5:58
symbol to the
6:00
minus and uh click on
6:05
okay and now on this plane we will uh
6:10
create this uh
6:12
profile we will click on rebuild select
6:15
the template and click on the
6:18
sketch select the model and hide
6:23
it and from here we will switch to the
6:27
wireframe now here first thing which we
6:30
will do is to create three construction
6:33
circles so we will select the circles
6:36
and uh draw
6:41
the three circles and
6:44
uh select all this and made it
6:48
construction and now we will uh
6:51
constrain these three construction
6:52
circles so first select horizontal
6:54
dimension select this and this and uh
6:58
provide the value of 71 mm
7:04
and move it and this is of a diameter
7:13
30 and now this is the diameter of
7:20
37 vertical dimension is of uh 70 mm
7:30
70 and horizontal dimension is of
7:35
27 say horizontal and give it
7:42
27 and now this one is of a 54
7:47
horizontal
7:49
dimension say it
7:51
uh
7:53
54 and uh vertical dimension of
7:57
33 so select it and give the vertical
8:01
dimension of 33
8:06
now I will uh move
8:09
it and this is of diameter 30 so select
8:14
it give a diameter of 30 and
8:21
now we will constraint this one so this
8:25
is the distance of 41 select these two
8:28
points and uh add a vertical dimension
8:32
and give it 41
8:35
so this is the positioning of this
8:38
construction circle and based on the
8:41
this construction circle we will create
8:44
our
8:45
profile
8:47
so first thing which we will do is to
8:51
project the geometry we will uh project
8:54
this this and this and from here we will
8:59
select the line tool and uh create a
9:02
line
9:07
and we will select a threepoint arc
9:10
select threepoint arc and create an arc
9:15
and uh select this and this and add a
9:19
tangency and now we will select this and
9:22
this and click on the
9:25
merge and let's see what is the
9:28
conflicting so we will delete it and uh
9:31
this is the radius of uh 51
9:38
uh
9:39
51 and
9:41
here we will create a line which will be
9:45
tangent so we will select a line tool
9:49
and select this and this and add a
9:52
tangent also select this and this and
9:55
add a tangent and now I will use the
9:58
trim tool to trim
10:01
it and
10:02
now I will draw the line at the bottom
10:09
side and we will select a threepoint
10:15
arc and we will select this and this and
10:19
add a
10:20
tangency select this and this and add a
10:24
tangency
10:25
and now we will uh select a threepoint
10:28
arc and create an arc equal to our
10:32
construction one so now here we have the
10:36
conflict so we will select it delete it
10:39
or deactivate it so we will simply
10:41
delete it and uh this is the radius of
10:45
R22 so we will select
10:48
it and provide the radius of R22 and now
10:54
here we will select this and this and
10:57
click on
10:59
the
11:01
merge and here we will delete the
11:05
constraint and
11:07
uh we will also delete it so
11:12
here is uh we will again give the
11:18
22
11:20
and this and this we will give the equal
11:24
relation and
11:27
now we will
11:31
uh draw the line here which is the this
11:35
profile so we will create a rough
11:38
profile
11:42
and we will make it tangent we will
11:45
select this and this and add a tangent
11:48
click on the trim to trim it and now we
11:53
will select this line and add a vertical
11:56
relation select this and add the
12:00
dimension of uh
12:03
1.5
12:06
and from center of this construction to
12:10
this one is of uh
12:15
27 and we will move
12:19
it and
12:25
now we will uh create
12:29
a threepoint arc to exactly to this uh
12:33
projected
12:38
edge sometimes free get
12:41
solver give lots of uh error so we will
12:44
uh keep the patience and we will delete
12:48
it and we will give it equal and now
12:51
here uh we will uh close the profile
12:54
select this to this and this to this and
12:59
we will delete this uh
13:03
conflict and
13:08
now it is unconstrained so we will
13:12
constrain it
13:15
so this is
13:17
the 22 mm from the center so from here
13:22
to here select the vertical dimension
13:25
and give it
13:27
22 and now uh we will uh select a
13:30
threepoint arc and create an arc and
13:33
create
13:34
a equal to the our construction and here
13:38
uh we will uh remove this uh conflict
13:42
and we will drag it and select this and
13:45
this and made it
13:53
uh
13:54
equal so our uh file is fully
14:00
constrained and uh we will come out of
14:03
it and click on close and uh press V7
14:09
for shaded view select the age and click
14:11
on extrude and give it 11 mm and click
14:15
on uh symmetric to the plane click on
14:19
okay and
14:23
now we will uh select the face and uh we
14:28
will create this
14:30
profile click on sketch and
14:33
here we will uh switch to the wireframe
14:37
and click on the project
14:41
geometry and here uh we will create a
14:45
construction circle
14:47
select this and this and add a dimension
14:52
of 70
14:54
mm and this is of diameter
14:58
37 select it uh and uh 37 and uh select
15:04
horizontal dimension select this and uh
15:08
this and add a value of uh 27 and here
15:12
uh we will make it a
15:15
construction and
15:17
now we will select the line tool and uh
15:21
create a angular
15:23
line and uh select this point and this
15:27
point and add a horizontal dimension of
15:30
6
15:32
mm and
15:34
uh we will select one more
15:38
line and we will add
15:42
the parallel
15:44
relation and here we will select this
15:47
point and this line and add a dimension
15:51
of uh
15:59
27 and
16:05
here we will
16:08
uh select this and this and add a
16:12
tangent relation
16:17
because this is the tangent and uh now
16:21
uh we will select a threepoint arc and
16:25
uh create an arc and we will move
16:29
it and made it equal first uh we will
16:33
delete
16:35
it select this and this and add
16:47
equal add a
16:50
coincidence so our uh sketch is fully
16:53
constrained we will close it and we will
16:56
extrude it to the 37.5 press uh V7 for
17:02
shaded and select the sketch click on
17:05
extrude and select on the
17:07
reverse and here uh wire is not
17:12
closed so here we will uh select the
17:15
sketch and click on the validate and
17:18
select
17:19
the so here is a trouble so we will
17:22
close it we will uh switch to the
17:26
wireframe and let's see what happened
17:28
here so here is wire not closed so we
17:31
will select the line tool
17:35
create a line and then again we will
17:37
select a tree
17:40
pointer and let's see what is the
17:43
unconflict say delete it so now our wire
17:47
is closed press V7 select the sketch and
17:52
click on extrude and give it value
17:58
13.5 and now we will uh create this boss
18:03
So for this we will select this backside
18:05
face and click on the sketch and uh
18:08
switch to the
18:09
isometric click on the project
18:12
geometry and uh we will uh create a
18:17
circle and
18:20
uh give it a diameter of uh
18:25
22 click on close and uh we will extrude
18:30
it press zero
18:34
for isometric select the sketch click on
18:36
extrude say reverse and give the value
18:41
22 click on
18:44
okay and
18:47
now we will uh
18:50
create this
18:56
boss so for this we will uh select
19:05
this face and uh click on the
19:09
sketch so here we can see that it is a
19:13
19
19:15
to9 means
19:17
38
19:18
so we will uh place the isometric and
19:24
here it is of 11 mm so we will select
19:28
this phase and insert a datam plane and
19:30
insert at a distance of
19:33
5.5 and we will uh make it uh minus
19:37
click on okay select the
19:41
plane rebuild it and click on the sketch
19:45
and we will click on the project
19:51
geometry and
19:53
now we will uh create a circle equal to
19:57
the
19:59
projection and again click on the circle
20:02
create a circle and this is of the
20:06
12.67 select diameter and give it a
20:10
12.67 click on okay and here it is
20:17
of 19
20:20
mm 199 19
20:24
38 so we will select the sketch click on
20:27
extrude and give it 38 and keep it
20:32
symmetric to the
20:35
plane and uh click on okay
20:49
now we will uh hide this data
20:56
plane and now we will uh create this
21:01
extrusion so for
21:05
this here if we see here is a value 14
21:09
and 24
21:12
so first thing which uh I will do is
21:18
to select the phase and click on the
21:21
sketch and uh click on the project
21:24
geometry we will project it and uh
21:28
create a
21:29
circle and uh again select a
21:32
circle and select diameter and uh
21:36
provide it uh
21:39
14.32 click on okay and
21:45
here we will
21:47
uh create a
21:51
extrusion so if you see here so this is
21:55
the 14
21:58
mm
22:01
and here it is of a
22:04
24
22:07
so this is the face which is of 5 mm
22:15
so we will click on
22:18
extrude select the
22:20
reverse and here we will give it uh
22:25
5.5 and click on the
22:37
reverse let's cancel it and uh here we
22:42
will
22:43
uh define the plane at a distance of 5.5
22:47
because this is the 14 mm which will be
22:51
the
22:53
symmetric so we will delete it and uh we
22:59
have the data plane already at a center
23:03
so we will use the same data plane and
23:05
click on the sketch and click on the
23:08
project geometry
23:10
and uh press a space bar and hide it go
23:14
to the wireframe select a
23:17
circle and
23:21
uh give it uh of 14
23:26
uh 32 so select diameter and give it uh
23:32
14.32 and uh click on close press uh V7
23:37
for the shaded view select the sketch
23:40
click on extrude and give it 14 and keep
23:44
it symmetric to the
23:47
plane and now we will switch to the
23:51
isometric and
23:53
now we will uh
23:57
create this
24:00
hole
24:02
here which is off a D7 drill so we will
24:05
select the face and click on the sketch
24:08
and
24:10
here we will select a circle create a
24:14
circle and we will click on the project
24:17
geometry and project this all three
24:22
edges and here we will create a
24:25
threepoint
24:27
arc and select this and this and add a
24:30
tangent
24:32
select this and this and add a
24:35
coincidence select this and this and add
24:39
a vertical
24:41
relation and select uh radius and
24:45
provide it of radius of R9 and now we
24:50
will select circle and this arc and
24:53
click on the merge and we will make it
24:56
construction we will select the diameter
25:00
and view it of 7 mm click on
25:04
close click on uh cut and from here see
25:09
it through all say
25:11
okay now we will give this fillet so for
25:15
this we will select this edge click on
25:17
the fillet and here I will give
25:21
value
25:25
7
25:31
499 and again I will select
25:35
it and click on
25:37
okay so here we have given the fillet
25:41
and
25:42
now we will uh create a cut so here is a
25:46
cut so we will select the face and click
25:48
on the sketch and here I will
25:52
uh project the
25:58
edge i will select this and
26:01
this and here I will
26:05
uh project this horizontal and
26:09
uh top of the bottom and now I will
26:13
click on the rectangle and create a
26:17
rectangle select
26:19
coincidence select uh this and this and
26:23
add the horizontal
26:27
dimension select horizontal dimension
26:30
select this and this and add a value of
26:34
five and this I will give the
26:37
approximate of 25
26:40
click on
26:42
close and uh we will click on extrude
26:45
cut and we will give the cutff of 5 mm
26:49
say
26:51
okay so this is how we have successfully
26:56
modeled this uh socket from roller from
26:58
the scratch i hope you have enjoyed this
27:04
tutorial heat
27:29
heat heat heat
28:07
heat heat
#CAD & CAM
