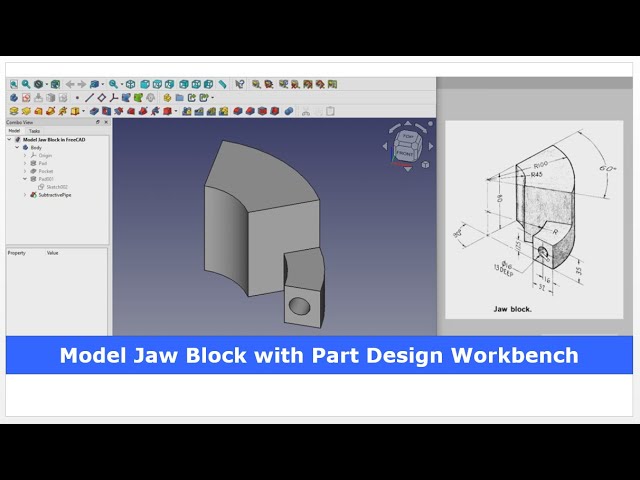

Model Jaw Block with FreeCAD Part Design Workbench | FreeCAD Tutorial | 3D Modeling | Mechnexus |
May 16, 2025
#freecad #freecadtutorial #learnFreeAD In this video I have explained How to Model Jaw Block with FreeCAD Part Design Workbench. ▶️ Get my Complete FreeCAD Course : From Zero to Expert ! https://ko-fi.com/s/1ab4385434 ▶️ Join my channel membership and keep supporting my work: https://www.youtube.com/channel/UCcn6z2whMaFu-_LDsEXCfVA/join ▶️ Visit my website for more info on FreeCAD-: https://mechnexus.com/ ▶️ Download Source File of Tutorial-: https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus
View Video Transcript
0:00
hello friends welcome to free tutorial
0:03
and in this tutorial we will learn how
0:05
to model this uh job block and there is
0:09
a swept hole inside of
0:13
it and you can see that I have already
0:16
made it this part and I will show you
0:20
from the scratch how you can do the same
0:22
in
0:23
frecad So I will close this file and
0:26
create a new file
0:29
If you want to learn free CAD from the
0:32
scratch then you can buy my complete
0:34
free course from zero to expert This
0:37
course also available on Udemy but uh
0:41
problem is that uh UDMI only give me the
0:45
37% of a core selling You can see here
0:48
user had paid $15 but I have only got $5
0:56
If you wanted to see the review of my
0:58
course you can go to the Udemy and
1:02
search for the free CAD and you will see
1:05
my course complete free CAD course from
1:07
zero to expert and this course is took
1:10
by the more than 2,000 students and I
1:14
have got the rating of
1:17
4.1 for the demo lectures you can expand
1:20
it and uh see the demo lectures and the
1:25
course structure But I will request you
1:28
if you found my course interesting and
1:32
uh reviews of the other student on Udemy
1:36
then I would request you to buy my
1:40
course from the my coffee shops because
1:45
if you buy from here it will help me a
1:48
lot So once you buy my course you will
1:52
be redirected to the Google drive and
1:54
here is the my course complete free
1:58
course from zero to expert Go inside and
2:02
uh the sections I have shown you on my
2:07
Kofi shop page So exactly same lectures
2:12
under the section is created For example
2:16
section one is a introductions to
2:18
freecad 1.0 and what is new in a freecad
2:22
1.0 So if you go to the section one so
2:26
there are the 18 lectures and if you go
2:29
inside of the sections one you will find
2:32
the 18 lecture total And once you go to
2:36
the lecture one you will find a video
2:38
file which you can download to your
2:42
system and you can watch it And this
2:46
course is updated on a equal interval of
2:49
a time once the new feature receives
2:52
came And uh once you purchase the course
2:55
you have the lifetime access to the
2:58
course and in the case of any doubt any
3:01
query you can mail me at
3:06
adminxus.com You can find my course link
3:09
on my YouTube channel You can see the
3:12
course link and uh you can also find my
3:15
Kofi course page link on uh pin comments
3:20
and video
3:23
descriptions and from here I will insert
3:26
my body and press the space bar to on my
3:30
origin
3:31
plane So for this part we will create
3:35
our base feature on this XY plane
3:41
Select the XY plane and click on the
3:44
sketch And now go to the model tab and
3:47
off the
3:49
plane Now as we can see that here is a
3:53
angle of 60° and this is the R 100 and
3:57
this is the R45
4:00
So we will select the line tool and
4:04
create a
4:07
line and then we will select the
4:11
threepoint
4:13
arc and create a
4:16
arc Now we will merge this arc center
4:20
with our origin and click on the merge
4:24
Now we will give the
4:29
angle Click on the angular
4:32
dimension and give the angle of uh this
4:36
is a 60 So this will be the
4:43
30° and this
4:46
radius will be R
4:50
100 So you can see that our sketch is
4:54
fully
4:55
constrained We will close
4:58
it and uh total height is of uh 80 mm So
5:04
we will select the sketch click on the
5:06
pad and give the height of 80
5:10
mm Click on okay And
5:14
now we will uh create this
5:19
cut For this we will select this top
5:22
plane and click on the sketch and this
5:26
is of uh
5:28
R45 So we will click on project geometry
5:31
project these two
5:34
edges Click on threepoint
5:40
arc Create an arc and merge the center
5:46
point And this R is of 45
5:55
And now we will close this profile
5:58
Select the line
6:05
tool and uh close
6:09
it Click on the
6:11
cut and from here say throw one
6:19
So this is the base profile which we
6:22
have made Now we will create
6:25
this boss For this we will select the
6:29
bottom face and click on the
6:31
sketch Switch to the isometric and then
6:35
top
6:36
view And from here we will select the
6:40
project
6:42
geometry And
6:49
now we will create a horizontal line
6:53
Select the
6:54
line and from here we will switch to the
7:00
wireframe and we will also project these
7:03
two
7:05
edges Select this and this
7:09
Select the threepoint arc
7:11
and create an arc
7:14
But if you see here the here uh it is
7:19
not
7:20
mentioned what is the dimension of R So
7:22
but we will consider
7:24
it into the mid of this R45 and R
7:30
100 So we will select the threepoint arc
7:35
create an
7:36
arc and first thing which we will do is
7:39
to merge two
7:42
centers and uh click on the
7:46
radius and give the radius
7:51
72.5 which is at the
7:53
mid Click on the trim and trim this
7:58
geometry And
8:01
now select the threepoint
8:05
arc and create one more
8:11
arc and click on the
8:14
merge Click on the
8:16
trim Trim it And now we will select this
8:21
and this and add the tangency
8:26
And
8:28
now we will give the horizontal
8:34
relation and this center is not
8:37
merge So we will select these two points
8:40
Click on the
8:42
merge and here is a
8:49
conflict Let's delete it
8:57
We will say it
8:59
merge and this and
9:02
this tangent
9:11
This and
9:13
this merge
9:43
Now we will create this boss and for
9:46
this boss we will select this base face
9:49
and click on the
9:51
sketch Switch to the
9:53
isometric Click on the project geometry
9:56
and project this edge Switch to the top
9:58
view and set it to the
10:02
wireframe And
10:04
here it is a
10:07
32
10:08
So we will create a threepoint
10:12
arc and create a
10:18
arc and we will merge
10:22
it And from
10:24
here we will create a
10:28
line and we will give
10:31
it dimension
10:35
32 And now we will select the threepoint
10:40
arc or simply we create a circle passing
10:44
through this
10:47
point
10:51
and we will create a
10:58
line and we will give it a coincidence
11:03
relation and then we will go to the trim
11:07
and trim the
11:10
rest So this is
11:13
how we have obtained the value of
11:18
R but we will not give it because with
11:21
32 it is already constrained Close it
11:25
Click on the pad and give the dimension
11:28
35 But you are not seeing anything on
11:31
the screen So click on the reverse
11:34
Click on
11:36
okay From here go to the flat
11:40
lines Switch to the isometric view So
11:43
you can see that uh this seems like two
11:45
separate
11:47
bodies So click on the
11:50
pad Go to the refine Set it
11:57
true Now we will create this hole
12:02
So we will select this face and click on
12:05
the
12:06
sketch Click on the
12:09
circle Create a
12:11
circle and uh give it a dimension of uh
12:15
16
12:17
mm and from age it is
12:20
16 So we will project this age and
12:25
bottom age as well
12:35
Now select horizontal dimensions Select
12:37
this center point and this one Give the
12:43
16 Select this point and this point and
12:46
give the dimension of uh
12:49
17.5 Click on okay
12:56
Now we will come out of the
12:59
sketch Now we will remove the material
13:04
for this hole along the this radius our
13:07
outer radius So we will select on the
13:11
subtractive
13:13
pipe Select the
13:17
object and uh add the
13:20
edges Select this edge and again click
13:25
on add age edge and click on this edge
13:28
Click on
13:31
okay So you can see that uh pole has
13:34
been passed through along the
13:39
radius So this is how we have model this
13:45
uh job block in frecad with the help of
13:49
a part design workbench So this is all
13:51
about this tutorial Thank you for
13:53
watching and thank you for your valuable
