Model Guide Clip with FreeCAD Part Design Workbench | FreeCAD Tutorial | 3D Modeling | Mechnexus |
May 16, 2025
#freecad #freecadtutorial #learnFreeAD In this video I have explained How to Model Guide Clip with FreeCAD Part Design Workbench. ▶️ Get my Complete FreeCAD Course : From Zero to Expert ! https://ko-fi.com/s/1ab4385434 ▶️ Join my channel membership and keep supporting my work: https://www.youtube.com/channel/UCcn6z2whMaFu-_LDsEXCfVA/join ▶️ Visit my website for more info on FreeCAD-: https://mechnexus.com/ ▶️ Download Source File of Tutorial-: https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus
View Video Transcript
0:01
hello friends welcome to Frecad tutorial
0:03

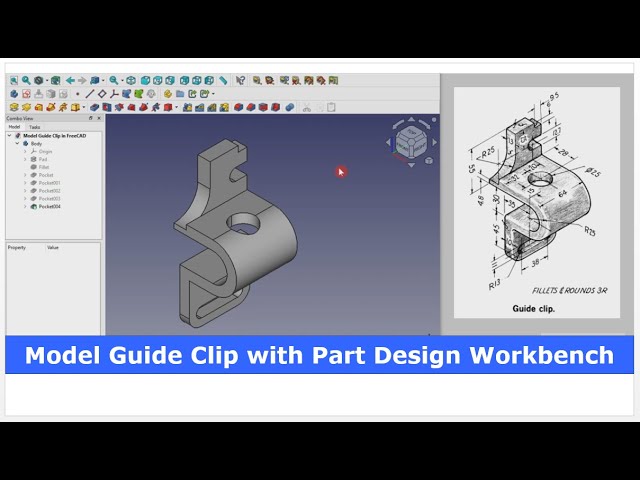

and in this tutorial we will model this
0:05
guide clip in Frecad As you can see that
0:08
uh I have already model it with respect
0:11
to our isometric drawing and I will show
0:14
you from the scratch how you can do the
0:16
same in freead If you want to learn free
0:19
CAD from the scratch then you can buy my
0:22
complete free course from zero to expert
0:26
This course also available on Udemy but
0:29
uh problem is that uh UDMI only give me
0:33
the
0:33
37% of a course selling You can see here
0:37
user had paid $15 but I have only got $5
0:44
If you wanted to see the review of my
0:46
course you can go to the Udemy and s
0:50
search for the free CAD and you will see
0:53
my course complete free CAD course from
0:55
zero to expert and this course is took
0:59
by the more than 2,000 students and I
1:02
have got the rating of a
1:05
4.1 for the demo lectures you can expand
1:09
it and uh see the demo lectures and the
1:13
course structure But I will request you
1:17
if you found my course interesting and
1:20
the reviews of the other student on
1:24
Udemy then I would request you to buy my
1:29
course from the my coffee shops because
1:33
if you buy from here it will help me a
1:36
lot
1:37
So once you buy my course you will be
1:40
redirected to the Google drive and here
1:43
is the my course complete free course
1:47
from zero to expert Go inside and uh the
1:52
sections I have shown you on my Kofi
1:56
shop page So exactly same lectures under
2:00
the section is created For example
2:05
section one is a introductions to free
2:08
1.0 and what is new in a freecad 1.0 So
2:12
if you go to the section one so there
2:14
are the 18 lectures and if you go inside
2:18
of the sections one you will find the 18
2:22
lecture total And once you go to the
2:24
lecture one you will find a video file
2:28
which you can download to your system
2:31
and you can watch it And this course is
2:35
uh updated on a equal interval of a time
2:39
once the new feature is came And uh once
2:42
you purchase the course you have the
2:44
lifetime access to the course and in the
2:48
case of any doubt any query you can mail
2:51
me at admin
2:54
ratemnexus.com You can find my course
2:57
link on my YouTube channel You can see
3:00
the course link and uh you can also find
3:03
my Kofi course page link on uh pin
3:08
comments and video
3:10
descriptions So I will uh close this
3:13
file and create a new
3:16
file And here I will create a body and I
3:20
will on my origin plane and I will
3:23
select this front plane and click on the
3:25
sketch go to the model tab and I will
3:28
hide my origin plane Now
3:32
here this will be our base
3:35
feature and this age will be lie on our
3:39
axis So first I will create the two
3:45
circle and I will give it a radial
3:48
dimension which is of R25 So I will
3:51
select it Select on a radial dimension
3:55
and I will give it
3:57
25 inner
4:01
one
4:07
R15 because this is the 30 which means
4:10
R15 and this outer one is
4:13
R25
4:15
Now we will keep this age on this axis
4:20
So we will select horizontal dimension
4:22
and give the horizontal dimension of
4:27
25 sorry
4:30
35 And
4:32
now I will
4:35
uh select the line tool and I will draw
4:40
the tangent
4:42
line at top and the
4:47
bottom And
4:49
now I will keep this edge on my axis So
4:55
I will select the axis and this point
4:57
and add the coincidence constraint And
5:00
now I will uh select the polyline
5:04
tool And I
5:06
will create a
5:09
profile And
5:12
similarly I will also create on the top
5:15
side select the polyline tool
5:23
Now this will be
5:28
vertical And now next thing which we
5:31
will do is to trim the unnecessary
5:35
geometry So click on the
5:38
trim Trim the internal and trim this arc
5:42
as well
5:44
Now we will read the dimensions So here
5:47
we can see that here is a 45 and uh this
5:52
is the R13 So this outer radius R13 and
5:57
this slot center is concentric So 45 +
6:02
13 from this age So we will select this
6:05
age and give 45 +
6:10
13 And
6:14
now we will
6:18
constrain by moving that uh what is the
6:21
unconstrained So there is no any
6:24
tangency So we will select and create
6:27
the
6:29
tangent and here thickness is 10 mm is
6:32
given So we will simply select this line
6:34
and give the distance of a 10 mm
6:40
And now from the center here is a hole
6:44
is a 15 mm +
6:47
28 So we will select the horizontal
6:50
dimensions Select this point and origin
6:53
point and we will add 28 + 15 28 +
7:03
15 and we will move it to
7:07
outside And now here is a 13 mm
7:11
thickness is given So we will select it
7:14
and add the dimension of a 13
7:17
mm And now we will constrain the total
7:21
height So for total height we can see
7:24
here it is a
7:28
45 So we will simply select this line
7:31
and add the
7:33
dimension 55 here So we will give it 55
7:38
So now our sketch is fully
7:45
constrained We will come out of the
7:47
sketch and total extrusion length is of
7:50
64 So click on the pad and click on the
7:55
dime
7:57
length
7:58
and also click on symmetric to the plane
8:02
Switch to isometric and click on okay So
8:06
this is the piece feature which we have
8:08
made Now our next feature is to create
8:12
this slot So we will select the face and
8:14
click on the
8:16
sketch We will rotate our
8:19
model and we will project
8:22
this two
8:24
edges and click on the
8:28
rectangle And here we will delete this
8:32
line and click on the threepoint
8:37
arc and create a
8:40
arc And now we will add the
8:45
tangency Now we will switch to the
8:49
wireframe for better visibility The slot
8:52
is of 12.7 So we will select it and give
8:56
it a 12.7
9:00
And
9:01
uh this center is of uh 32 +
9:07
20 which means it is a
9:10
52 So we will select this
9:13
point and this point and give it
9:18
52
9:21
Now we have to constrain this
9:25
center So it is a 25 from the top So we
9:30
will select point this point and this
9:33
point and give the dimension of
9:40
25 and I will move my
9:43
dimensions Now close
9:46
it flat lines and click on the
9:50
pocket and from here say through all say
9:53
okay
9:57
Now our next feature is to create this
10:00
cut So we will select the face click on
10:02
the
10:03
sketch rotate our
10:06
model click on project
10:09
geometry select the
10:12
rectangle and this is of 9.5 and six So
10:16
we will select it
10:20
Give
10:24
9.5 and this is the
10:28
six Now I will move
10:30
it Close
10:32
it Click on the pocket and from here say
10:36
through all save
10:38
Okay Now our next feature is to create
10:42
this hole So for this I will select the
10:45
face and click on the sketch
10:50
And we will create a hole on this
10:54
axis And from the age whole position is
10:57
28 So we will click on project
11:01
geometry and project this
11:04
age Click on
11:07
the dimension tool Select this
11:10
point and this
11:15
one Edit sketch
11:30
Select this point and this point and at
11:33
the distance of a 28 and this is of a
11:37
hole of dia 25 So we'll select the
11:41
diameter give it 25 and close it
11:46
Now we will click on the pocket tool In
11:49
fact you can also made it with the whole
11:52
feature but I have used the pocket tool
11:55
Click on the pocket and give the
11:58
dimension 15
12:05
mm Click on
12:08
okay Now our uh
12:12
next feature is to create this
12:17
cut So we will select the back
12:20
face Click on the
12:25
sketch and we will project these two
12:28
edges So click on project geometry
12:31
Select this age and this edge and we
12:34
will switch to this view left side And
12:40
now we can see here the radius of
12:50
25 Now we will select the threepoint arc
12:54
and create a
12:56
arc Now select the line
13:04
Now select this arc and line and add the
13:09
tangency and make
13:12
this vertical
13:19
Now we will uh close our
13:28
profile and this
13:30
arc will be have the coincidence
13:33
relation with the
13:35
line and we will select the arc and
13:38
click on the radial
13:41
dimension and give it
13:46
25 And this center is of a 25 from the
13:50
top because we can see that this slot
13:53
center and this center are in the same
13:56
line So I will select these two
14:07
points and give the dimension of a
14:11
25 Click on close Now this cut depth of
14:16
13
14:17
mm So we will select the pocket
14:20
tool and give the 13
14:23
mm Click on the okay So we have got the
14:27
cut as per shown in the
14:31
drawing Now our uh next feature is to
14:35
give the fillet of R13 at these two
14:40
corners So we will rotate our model
14:43
Click on the
14:45
fillet Select this edge and this edge
14:49
and give the
14:52
R13 Click on
14:55
okay Now select the face and click on
14:58
the
15:01
sketch Click on the project
15:04
geometry and uh I will select the slot
15:09
tool and create a slot
15:14
and this slot of the 11 mm So I will
15:17
select these two
15:19
points
15:21
and add the 11 mm
15:28
dimension Now close
15:30
it Click on the pocket
15:33
tool and say through all Say
15:39
okay
15:41
Now if you see there is a common note
15:44
all fillet and rounds are the three
15:47
R So I'm not going to make the fillet at
15:51
all the locations but I will add the
15:54
fillet at these two locations
16:02
I will select this
16:06
edge this edge
16:09
and this edge and give the radius
16:15
three Click on
16:18
okay Press control
16:20
7 Place uh zero for isometric
16:26
Now you can see that uh we have made all
16:30
the features of this guide
16:32
clip and uh I will now go to the body go
16:37
to the appearances and here I will apply
16:39
the material that let's uh I wanted to
16:42
apply the chrome click on the
16:45
close So you can see that
16:48
uh we have successfully completed this
16:51
tutorial modeling of a guide clip I hope
16:54
you have liked this tutorial Thank you
16:57
for watching and thank you for your
16:59
valuable
17:01
[Music]
17:17
time
17:18
[Music]
17:31
Heat
17:33
[Music]
17:39
Heat Heat up
17:42
[Applause]
17:55
here
17:57
[Music]
#CAD & CAM
