R60 Mini Countryman SD: Stage 1 remap with us!
Jan 1, 2025

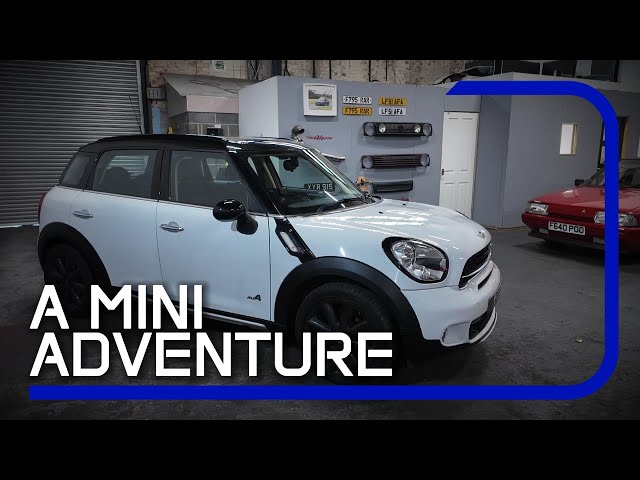

At North East Tuning we've built our business on custom on road tuning, not chasing power figures. And this Mini Countryman SD is a fantastic showcase of how you can transform a car, in the real world.
View Video Transcript
0:00
let's go today we're going to tune a
0:03
mini Countryman SD all four this is an
0:06
example of a car where you can make
0:08
massive improvements to the overall
0:10
drivability without aiming for massive
0:13
power these cars come with 142
0:16
horsepower 2 L diesel engine they're
0:19
based on a BMW design the engine's
0:22
pretty much the same as you'd get in a
0:23
320d or a 120d but they're massively
0:27
detuned these only leave the factory
0:29
with4 42 horsepower mechanically
0:32
identical engines in the BMW range have
0:35
closer to 180 horsepower when you couple
0:39
that power limitation that these have
0:40
built in from the factory with an all
0:43
wheeel drive system and an automatic
0:46
gearbox as we've got in this car there's
0:48
loads of areas to go at the initial
0:51
throttle response is one of the things
0:53
that I find the hardest to deal with in
0:55
these minis initially when you put your
0:57
foot down they're very very sharp they
0:59
pull away great but anything from about
1:02
20 to 60% throttle you find yourself
1:05
putting your foot down but the car
1:06
doesn't actually want to go anywhere
1:08
this lack of modulation and lack of
1:10
control in the throttle pedal is one of
1:12
the key areas that we aim to improve
1:14
when we tune any mini under Bonnet
1:18
checks on these diesel minis are
1:20
actually fairly straightforward we are
1:21
using our topon Phoenix Elite diagnostic
1:24
tool to do a global scan of the car this
1:27
is going to get every single control
1:29
module on the the vehicle is going to
1:30
tell us if there's any fault and
1:32
anything that we need to look out for
1:34
before we go out and road test the
1:37
car our diagnostic tool allows us to
1:40
print off a professional diagnostic
1:42
report showing every single control
1:44
module which has fault stored in it and
1:46
then a breakdown and list of every issue
1:49
that the vehicle has so we're out and
1:51
about now data logging and driving this
1:54
mini I've tried to do a screen grab of
1:57
our data logging screen so that I can
2:00
lay it with me driving the car and
2:01
hopefully you can get an idea of what
2:03
we're looking for one of the areas on
2:06
these cars that I love to address when
2:08
we chew is the initial throttle response
2:11
these are the opposite of a lot of cars
2:13
that we get in when you first go to pull
2:15
away the throttle response is very sharp
2:18
and they pull away nice and quick but
2:20
then past that there's not much
2:22
modulation and there's not much more
2:24
acceleration you could add on to that
2:27
that's something that we definitely want
2:28
to address and we can do that by just
2:30
simply giving the car a bit more power
2:32
we're in fourth gear and we're going to
2:34
do a full throttle acceleration from low
2:36
engine speed right up to the top of the
2:38
Rev range or as far as the gearbox will
2:41
let
2:44
us we've just got back from Road testing
2:47
and data logging the mini we've
2:49
identified some areas that we'd like to
2:50
make improvements on and definitely
2:52
there's some head room to do it the data
2:55
logs look good and healthy although I
2:56
will say it's got a little bit of an
2:58
under boost but it's very consistent
3:00
through the ref range so I'm just going
3:01
to do some under Bonnet checks I think
3:03
it might have a sticky EGR valve this
3:06
red line is the requested boost pressure
3:08
and the Orange Line shows the actual and
3:11
we can see an issue here there's a
3:13
consistent under boost it's not quite
3:16
its set point for the full rev range
3:18
then for some reason here it jumps up
3:21
and then dies off and I think I know the
3:24
reason why we've done some under body
3:26
checks and we've looked at it
3:28
diagnostically to try and work out what
3:30
could be causing this slight under boost
3:32
I think the EGR valve is stuck open a
3:35
little bit and it's not fully closing
3:37
which is causing that boost to bypass
3:39
back into the EGR system it's very
3:42
common on these diesel BMW engines for
3:44
the inlet side of things and the EGR
3:46
valve to get Caked Up and they become
3:48
sticky to test that theory we're going
3:51
to map the EGR valve shut and unplug it
3:55
we're going to see if that fixes our
3:57
boost leak of course we've got our
3:59
laptop on the passenger seat just doing
4:01
data logging as we're driving as well
4:04
I'm going to be very keen to see if
4:06
mapping the EGR out has got rid of that
4:08
slight under boost this car had
4:11
before we've got a stage one tune in
4:13
this now which should take it up to
4:15
around about the 170 175 horsepower Mark
4:19
it's no more than they made as standard
4:22
from this engine in other models so it's
4:24
well within the confines of what it can
4:26
kind of deal with and what it's designed
4:27
for immediately drivve this I can feel
4:30
that the car's much more eager to rev
4:33
and it's happy to just drive itself you
4:35
don't feel like you're having to
4:36
constantly push it which is great when
4:39
you're up at speed the difference in
4:41
this now that it's tuned is
4:44
massive before this car felt like you
4:46
were constantly pushing it on and having
4:48
to work it whereas now it just cruises
4:51
along at speed with ease coming off this
4:53
roundabout we're in third gear it just W
4:57
that is night and day what a difference
5:01
a car doesn't have to be 5 600
5:03
horsepower to impress me I'm more
5:06
interested in getting things working as
5:08
efficiently as they can that's my goal
5:11
this is a night and day Improvement in
5:13
how this car drives it's time to do the
5:16
fourth gear acceleration and data log
5:23
that that is a massive
5:27
Improvement it's got so much power the
5:30
indicators fallen off this mini
5:33
Countryman SD has come to life with a
5:35
tune we've got a sharper throttle
5:37
response more consistent power delivery
5:39
we've got more power when we need it and
5:41
the gearbox has become much more shooted
5:44
by having that extra talk out on the
5:46
road the transformation on this car has
5:48
been excellent
