Hello everyone, myself Baradwas.
0:03
In this video I will show you thermouple
0:07
converter application.
0:09
First open instrumentation tools website
0:13
and on the right side click on the
0:16
search icon and enter thermouple
0:20
converter and then press enter again.
0:24
Now click on this thermouple converter.
0:30
Scroll down you will find the
0:32

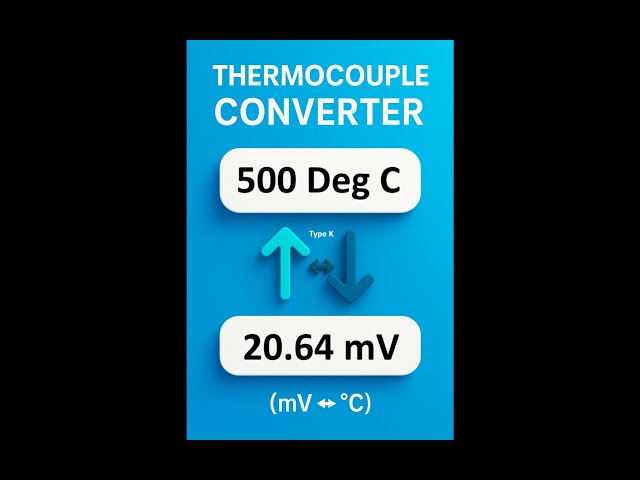

application. So this is our thermouple
0:35
converter application.
0:39
Okay. In thermouples we have different
0:43
types of elements available for
0:46
measuring the temperature.
0:50
Based on the materials properties the
0:53
type of thermouple is classified.
0:58
Let's say here type K is selected by
1:02
default. You can click here and you can
1:05
select the required thermouple. Okay, I
1:11
Thermouple is used for measuring the
1:16
Thermouple provides output in the form
1:19
of mill volts. It is a voltage signal.
1:26
measures the respective temperature and
1:29
then provides equivalent mill volts
1:35
I have a type K thermouple with me for
1:39
and it is measuring some temperature and
1:47
mill volts as output. Now I want to
1:51
calculate the equivalent temperature for
1:57
Now what I will do? I know the value
2:00
right the uh voltage value 12.55.
2:04
I will enter the 12.55 here and then I
2:07
will click on the calculate button.
2:12
Equivalent temperature is 308.23°
2:21
let's say I have some temperature value
2:23
with me and I want to know the
2:26
equivalent mill volts output wtage.
2:30
So in this case, what is the input
2:34
temperature is the input. Let's say the
2:36
temperature is 400° centigrade. And now
2:39
I want to know the equivalent mill volts
2:42
output. Now I will go to the mode and I
2:46
will select second one° centigrade to
2:50
mill volts. I uh so here I am giving
2:54
temperature input temperature value as
2:57
input and then I'll click on the
3:02
So the equivalent voltage is 16.39
3:09
Let's say I want I have some temperature
3:11
reading. Let's say it is around 2,000.
3:18
We have some error out of range.
3:21
Remember for each type of thermouple
3:26
it is designed for certain temperature
3:31
So we have fixed temperature scale. At
3:35
the same time the equivalent mill volts
3:38
also it is within the limits. Write
3:42
design limits in this case if you see
3:45
the range is -270° centigrade to 1372°
3:50
centiggrade for type K thermouple
3:54
I will select mill volts to degrees
3:56
centigrade and then I will enter let's
3:59
say 500 and calculate again of range it
4:06
must be within the limits right you can
4:10
select different thermal pool and select
4:13
the mode as required and enter the
4:18
temperature. Okay. Calculate
4:21
like that you can calculate the
4:24
equivalent temperature or equivalent
4:30
for each type of thermouple.
4:33
This is very useful to you when you are
4:36
doing some calculations or during
4:39
troubleshooting times.
4:42
You want to verify that your thermouple
4:45
is working fine or your transmitter
4:47
temperature transmitter is showing
4:48
correct reading. In many cases when you
4:52
when you want some cross verification
4:56
or you want to do the validation checks
5:00
then this converter is useful.
5:04
You can also use thermouple tables
5:07
or you can use this converter.
5:12
I will share the thermouple converter
5:15
application links in the comment
5:18
section. So try to uh explore the
5:24
Do subscribe and follow our channel.
5:28
Thank you for your support.
