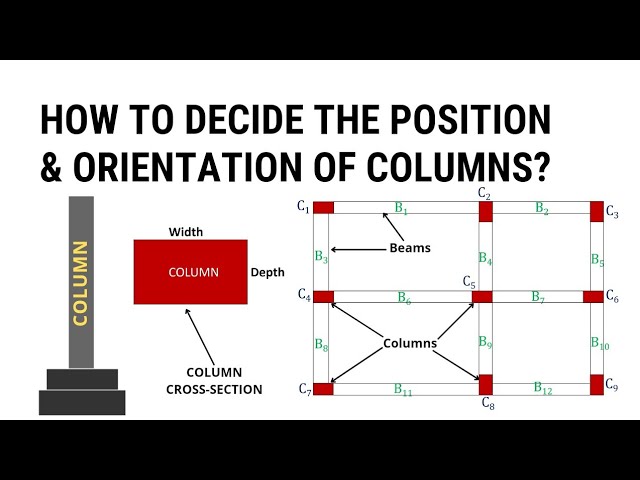

How to decide the position and orientation of Columns? | Structural planning | Civil Tutor

In this lecture, I have discussed briefly how to decide the position and orientation of columns in a building structure which is going to be an add-on to your civil engineering basic knowledge. Structural Mastery Certified Course 👇🏽👇🏽👇🏽 App link: https://play.google.com/store/apps/details?id=co.kevin.emmuo Telegram link: https://t.me/+yCaB58hzlvQ1Mzk1 After framing an architectural plan of a building, structural planning is done by deciding the Position and orientation of columns followed by positioning of beams, spanning of slabs, the layout of stairs and finally selecting the proper type of footing. Overall, the basic principle of deciding the layout of these components is the transfer of loads from the superstructure to the foundation along the shortest possible path. The columns should be oriented in a way that the depth (i.e. shorter side) of the column is perpendicular to the major axis of bending. In simple words, when a column is connected to beams, it is subjected to moments in addition to the axial load. That’s why the shorter side of the column should be aligned perpendicular to the major axis of bending. This way, we can get a larger moment of inertia which means a greater moment-resisting capacity. Compiled PDFs http://store.civiltutorofficial.com Must-have books for civil engineers 👇🏽 The A to Z of Practical Building Construction and Its Management https://amzn.to/3HKmjm9
