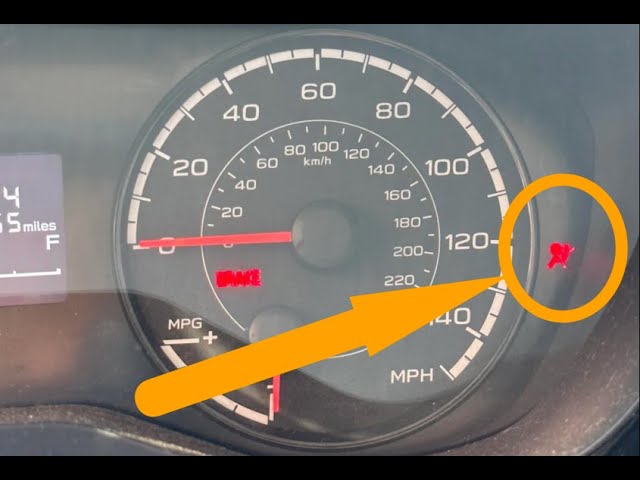

Hey, got that pesky airbag light staring
0:02
you down on your WRX or STI? Yeah, the
0:04
one that just won't go off no matter
0:06
what you do. It's annoying, I know.
0:08
What's up, guys? I'm Tom and welcome
0:10
back to Car Justify. I've been wrenching
0:12
on Subarus for a long time, and today
0:14
I'm going to walk you through how to
0:15
diagnose airbag module issues on your
0:17
WRX or STI. This is one of those things
0:20
that seems complicated, but hang with
0:21
me. We'll break it down nice and easy.
0:24
All right, let's get into it. First off,
0:27
if your airbag lights on, that doesn't
0:29
mean the whole system's toast. It just
0:31
means the car's found something it
0:32
doesn't like. Could be the module, could
0:34
be a sensor, or even just a loose
0:36
connection. So, don't panic yet. Step
0:38
one, grab yourself an OBD scanner, but
0:40
not just any scanner. You need one that
0:42
can read SRS codes. That's supplemental
0:45
restraint system. Fancy talk for your
0:47
airbags. I like the Autel or Blue Driver
0:50
ones for this. They won't break the bank
0:51
and they'll tell you what's actually
0:53
going on under the dash. Now, if your
0:55
scanner throws something like airbag
0:57
control module failure or crash
0:59
detected, that's when we got to take a
1:01
closer look. A lot of people get tripped
1:02
up right here. They think the module is
1:04
bad and go drop 500 bucks on a new one.
1:07
But hold up, let's check a few things
1:09
first. One super common issue, the
1:12
yellow connectors under the front seats.
1:14
Subaru uses those for the seat belt
1:15
tensioners and seat airbags. I've seen a
1:18
ton of WRXs where someone slides the
1:20
seat back real quick and boom, wiggles
1:22
that connector loose. happens more often
1:24
than you'd think. So, go ahead, slide
1:26
both seats all the way forward and peek
1:28
underneath. If you see a yellow plug
1:30
that's halfway out or just sitting
1:32
funny, unplug it, give it a quick shot
1:34
of electrical contact cleaner, and plug
1:36
it back in snug. Next, take a look at
1:38
your clock spring. That's the little
1:40
ribbon cable inside your steering wheel
1:42
that lets the wheel turn while keeping
1:43
the airbag connected. If your horn's not
1:46
working or your cruise control buttons
1:47
are acting weird along with the airbag
1:49
light, there's a good chance the clock
1:53
I actually had this happen to a buddy of
1:54
mine last week. He turned the wheel too
1:56
far with the battery disconnected and
1:58
the thing just snapped. You can replace
2:00
it yourself in like an hour. Just make
2:02
sure you disconnect the battery and wait
2:04
15 minutes before messing with the
2:05
steering wheel. Safety first. Yeah.
2:08
Okay. Now, here's one that really messes
2:10
with people. If your car was in even a
2:12
minor accident, the airbag module might
2:14
have stored crash data. That means even
2:17
if the airbags didn't deploy, the module
2:20
still thinks the car has been in a
2:21
wreck. And once that happens, it'll lock
2:24
itself down. You can't clear those codes
2:27
with a basic scanner. You either need to
2:29
send the module to a service that resets
2:31
crash data or replace it entirely.
2:33
There's companies online that'll do this
2:35
for around 50 to 100 bucks. Way cheaper
2:38
than buying a new module from Subaru,
2:40
let me tell you. Oh, and here's another
2:42
thing. Water damage. If you've ever had
2:44
water leak into your WRX, and trust me,
2:47
older ones are kind of known for it.
2:48
Check under the carpet on the passenger
2:50
side. That's where the module lives.
2:52
I've pulled modules out of puddles
2:54
before. If it's got corrosion or rust on
2:56
the casing, it's probably toast. Don't
2:58
try to clean it and reuse it. Just
3:00
replace it or send it out to get
3:01
rebuilt. And if your scanner gives you
3:04
something like module not communicating,
3:06
double check the wiring harness and the
3:08
fuses. Sounds obvious, but I had a guy
3:10
bring in his 15 STI once. Turned out he
3:13
blew the SRS fuse while jump starting
3:15
the car. Yep, that's all it was. New
3:18
fuse, light gone. So, always check the
3:20
simple stuff first. All right, so real
3:22
quick recap. Start with an SRS capable
3:25
OBD scanner. Check the yellow connectors
3:28
under the seats. Those are a classic
3:30
trouble spot. If the steering wheel
3:32
stuff is acting weird, check the clock
3:34
spring. If the car has been in a fender
3:36
bender, even a tiny one, you might need
3:38
to reset or replace the airbag module.
3:41
And if the passenger footwell's ever
3:43
been wet, yeah, you might be dealing
3:44
with a waterlogged module. Don't get
3:47
overwhelmed by all this. Most of the
3:48
time, it's something small and fixable
3:50
in your own driveway with just a couple
3:52
tools and some patience. And hey, if
3:55
this helped you out or saved you from
3:57
spending a bunch of money at the dealer,
3:59
do me a favor, hit that like button and
4:02
subscribe so you don't miss the next
4:03
video. I post new tips every week and I
4:06
always try to keep it real and easy to
4:08
follow. Drop a comment if you've got a
4:10
question about your WRX or STI. I read
4:13
every single one. All right, stay safe
4:15
out there and I'll catch you in the next
