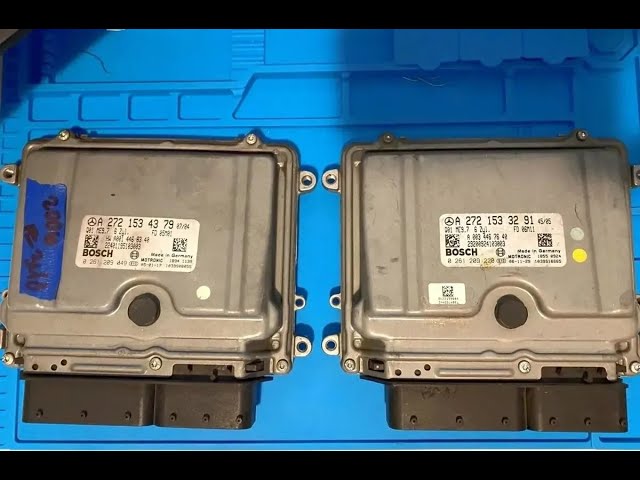

swapped the ECU on your Mercedes and now
0:02
the car won't start that's the
0:04
immobilizer kicking in your new ECU
0:07
isn't paired with the rest of the car's
0:08
security system yet and yeah it's not
0:10
plugandplay like some other brands hey
0:13
I'm Tom from Car Justify if you've
0:15
replaced the engine control unit on a
0:17
Benz maybe after damage water intrusion
0:19
or a performance upgrade you're probably
0:21
stuck with a no start and a blinking
0:23
immobilizer light i'll walk you through
0:25
what actually needs to happen to
0:26
reprogram that ECU and get the car
0:30
so first thing Mercedes ECUs are married
0:33
to the car's immobilizer system that
0:35
includes the ECU itself the EIS
0:38
electronic ignition switch the key and
0:40
the ESL electronic steering lock if
0:43
those aren't matched the car won't crank
0:46
there are really two main ways to
0:47
reprogram or virginize an ECU so it can
0:50
be paired with your vehicle one is by
0:52
using official Mercedes diagnostic
0:55
equipment like the Star diagnostic
0:57
system with online access the other is
1:00
with aftermarket tools and software
1:02
which some independent shops or tuners
1:04
use if you've got a used or donor ECU
1:07
you'll need to either virginize it
1:10
basically wipe the old vehicle data from
1:12
its memory so it can be repaired with a
1:14
new system or clone your original ECU
1:17
copy all the data from your old unit
1:18
onto the new one virginizing requires
1:21
opening the ECU and accessing the EPROM
1:23
chip inside you'd use a programmer like
1:25
VVDI Autel or KAG to dump the original
1:28
file clear the immobilizer info and
1:30
reflash it once it's virgin you install
1:33
it in the car and use a diagnostic tool
1:35
to perform the initial startup procedure
1:37
that links it to the EIS and key cloning
1:40
is a little easier if your old ECU is
1:42
still readable you connect both the old
1:45
and new ECUs to the programmer and do a
1:47
direct copy that way the new one becomes
1:50
an exact twin of the original same
1:52
immobilizer same VIN same everything now
1:55
if you're using a brand new ECU straight
1:58
from Mercedes that comes blank and is
2:00
ready to be married to the vehicle but
2:01
you'll still need a dealership or
2:02
specialist with Star Diagnosis access to
2:05
code and activate it and no just
2:07
swapping the ECU and clearing codes
2:09
won't get you past the immobilizer the
2:12
car looks for that handshake between
2:13
modules at every startup if it doesn't
2:15
match it kills the ignition signal so
2:18
what can you do if you're working at
2:20
home if you're not comfortable with
2:22
EPROM programming or don't have access
2:24
to Star your best bet is to pull the ECU
2:27
and send it to a professional bench
2:29
service they can clone or virginize it
2:31
properly and send it back ready to plug
2:33
in once the ECU is matched start the car
2:36
and confirm the immobilizer light goes
2:38
out and the steering lock disengages
2:40
quick recap mercedes ECS are security
2:43
locked to the ignition system
2:45
a swapped unit must be virginized or
2:49
dealer tools or advanced programmers are
2:51
required you cannot bypass this with a
2:54
basic scanner or battery reset hope that
2:56
clears things up if you're diving into
2:58
Mercedes electronics it's not light work
3:00
but it's doable with the right tools or
3:02
the right help if this helped you
3:04
understand what's going on with your
3:05
Benz after a swap hit like and subscribe
3:08
to Car Justify for more straight talk
3:10
solutions from the garage see you next
