Data Modelling Types

In this video we are discussing different data modeling types

So what are the different data modeling types? So there are different data modeling types are available and some of them are flat, star

schema, hierarchical, relational and object relational. Object relational means the object oriented data model and relational data model will get punched here

So that is known as the object relational relational model. So, let us discuss each one of them one by one and their comparative study

At first we are starting with the flat model. In the flat database model, all the data are stored as a single row of data as a text file

So in case of flat database model, all the data will be stored as a single row

The fields are separated by delimiters like our spaces, might be the commas, tab, etc

And the main disadvantage of this model is it is not easily accessible by different

software to make the complex relationships between them So that is the main disadvantage That means all softwares cannot access them to make the relationships between them So this is known as the flat model you are getting here So here you can find that we are having the key value pairs here in the form of a text file

So that is a conversion utility. So this text file will be converted through this conversion utility to the corresponding

relational database. And that is the data modeling type that is a flat model

we are going for the next model that is the star model. In the star model, all the data tables

dimensions are attest with one centralized table and that table is known as factable. Just

look at this diagram. Here we are having this factable that is a sales order fact. So

in the star model, all tables, the dimensions are attached with one centralized table, that

is a fact table. And the fact tables are in the 3NF in this schema

and where the dimensional tables are denormalized. So this fact table will be in 3NF, that is in the third normal form

So in our database we have learned our normalization. So this fact table will be in 3NF form but this dimension tables will be in unnormalized way So the fact tables are in F in this schema and whereas dimensional tables are denormalized And starred schema is the simplest architecture and it is most commonly used nowadays

So this is our fact table and here we're having the store dimension, product dimension

sales order dimension, date period dimension and customer dimensions. So all these tables will remain in some denormalist form and this fact table

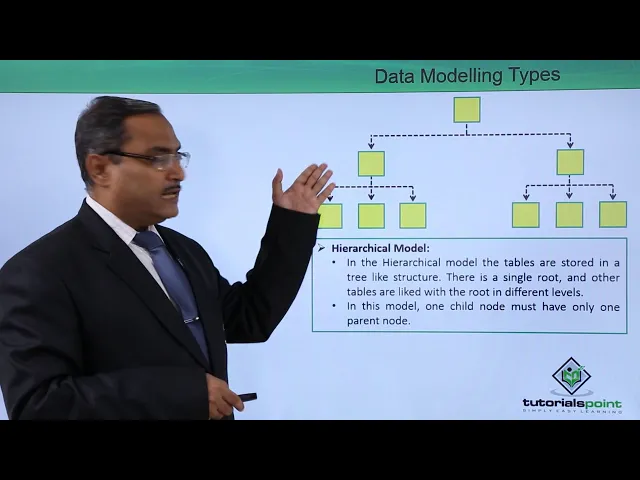

will be in 3NF. Now the next one is our hierarchical model. In the hierarchical model, the tables

are stored in a tree-like structure. You can find that a table has been stored in a tree-like

structure. So, this is the root node and each and every node can have only one root. So

there is a single root and other tables are liked with the root in different levels. You can

find that we are having different levels are there. And in this model, one charge of the table

node must have only one parent note. So this is having only one parent here. So if you consider

this one as a subtree, so there is a root and this is the final root of this hierarchical

model And hierarchical means always it will be in the tree format Next one we are going for the relational model In the relational model the information is stored in two dimensional tables that means

the table will have certain columns and certain rows so that will be in the form of two

dimensional tables and the relations are formed by storing the common attributes and between

the two tables using the common attributes we shall form the relations

The tables are also known as the relations in this model. can find that we are having this relation, there is a table name is there. These are the headings

This is the body. The value is there at the intersection of row and column. This is the relation

table and this is a tapple or row in unordered way. So, this is known as the relational model

Next one is the object relational model. Now, what is the object relational model? In the object

relational model, the relational model and the object-oriented data model have got merged

together and it supports the different object-oriented database concepts like our objects

classes, inheritance, and etc. Just consider this respective diagram given. So here we're having

this user. User is having the name, email address. So this is the respective user is
