How to Quickly Test an LED (The Multimeter Method)
771 views · Oct 11, 2024 motbots.com
This is a supplemental video to our page titled "Fundamentals of Electronics: LEDs". This video is meant to demonstrate how to test an LED by using a multimeter. To perform this method of LED testing all you need is an LED and a multimeter. Take the LED to be tested and connect the positive test probe of the multimeter to the anode (+) of the LED. Next, connect the negative test probe of the multimeter to the cathode (-) of the LED. Turn the multimeter setting to the diode test setting. If your LED is good and your multimeter is providing power to the LED, it should light up. PARTS LIST: Multimeter: https://amzn.to/3xmJTqd LED: https://amzn.to/45FzeDy Video for Blog Page: "Fundamentals of Electronics: LEDs" Page URL: https://motbots.com/leds Description: This is a supplemental video for a post made on our website. Website: https://motbots.com EARNINGS DISCLAIMER: Motbots may earn an affiliate commission if you purchase something through recommended links. #motbots #motivatedrobotics #learnelectronics #led #coincellbattery #testingled #howto #diy #commissionearned

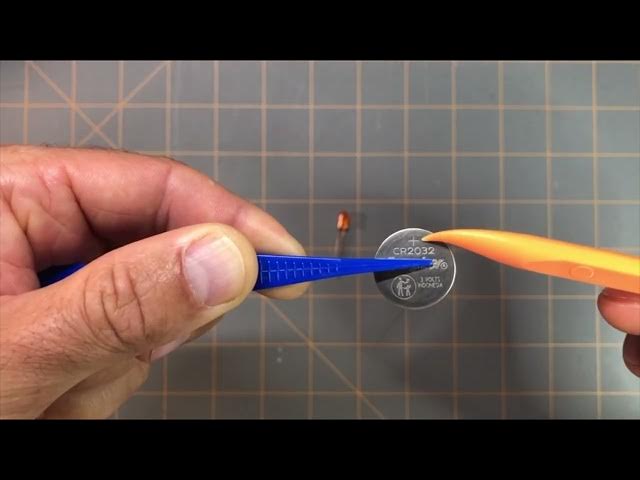

How to Quickly Test an LED (The Coin Cell Method)
9 views · Oct 11, 2024 motbots.com
This is a supplemental video to our page titled "Fundamentals of Electronics: LEDs". This video is meant to demonstrate how to test an LED by using a coin cell battery. To perform this method of LED testing all you need is an LED and a coin cell battery. Take the LED to be tested and touch its anode (+) to the positive side of the coin cell battery (+) and touch the cathode of the LED to the opposite side of the coin cell batter or its negative side (-). If your LED is good, then it should light up (assuming your battery is good). PARTS LIST: Coin Cell Battery: https://amzn.to/45HlqZg LED: https://amzn.to/45FzeDy Video for Blog Page: "Fundamentals of Electronics: LEDs" Page URL: https://motbots.com/leds Description: This is a supplemental video for a post made on our website. Website: https://motbots.com EARNINGS DISCLAIMER: Motbots may earn an affiliate commission if you purchase something through recommended links. #motbots #motivatedrobotics #learnelectronics #led #coincellbattery #testingled #howto #diy #commissionearned

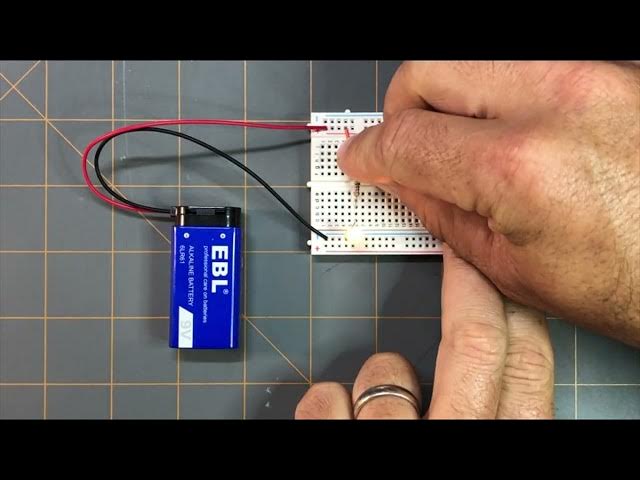

Fundamentals of Electronics: LEDs (LED w/ Current Limiting R...
20 views · Oct 11, 2024 motbots.com
This is a supplemental video to our page titled "Fundamentals of Electronics: LEDs". This video is meant to demonstrate what happens to an LED when there is a current limiting resistor placed in the LED circuit. If you were to connect an LED straight to a power source, such as a battery, with no current limiting resistor in the circuit path, then the LED would try to dissipate as much power as it could causing it to burst in a quick flash and burn out — destroying the LED. Video for Blog Page: "Fundamentals of Electronics: LEDs" Page URL: https://motbots.com/leds Description: This is a supplemental video for a post made on our website. Website: https://motbots.com #motbots #motivatedrobotics #learnelectronics #led #resistor #circuit
Fundamentals of Electronics: LEDs (LED w/ No Current Limitin...
14 views · Oct 11, 2024 motbots.com
This is a supplemental video to our page titled "Fundamentals of Electronics: LEDs". This video is meant to demonstrate what happens to an LED when there is no current limiting resistor placed in the LED circuit. If you were to connect an LED straight to a power source, such as a battery, with no current limiting resistor in the circuit path, then the LED would try to dissipate as much power as it could causing it to burst in a quick flash and burn out — destroying the LED. Video for Blog Page: "Fundamentals of Electronics: LEDs" Page URL: https://motbots.com/leds Description: This is a supplemental video for a post made on our website. Website: https://motbots.com #motbots #motivatedrobotics #learnelectronics #led #resistor #circuit
