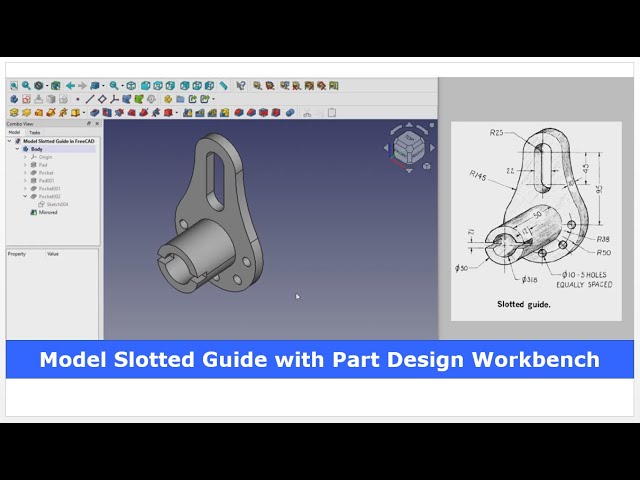

Model Slotted Guide with FreeCAD Part Design Workbench | FreeCAD Tutorial | Mechnexus |
May 14, 2025
#freecad #freecadtutorial #learnFreeAD In this video I have explained How to Model Slotted Guide with FreeCAD Part Design Workbench. ▶️ Get my Complete FreeCAD Course : From Zero to Expert ! https://ko-fi.com/s/1ab4385434 ▶️ Join my channel membership and keep supporting my work: https://www.youtube.com/channel/UCcn6z2whMaFu-_LDsEXCfVA/join ▶️ Visit my website for more info on FreeCAD-: https://mechnexus.com/ ▶️ Download Source File of Tutorial-: https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus
View Video Transcript
0:00
hello friends welcome to free tutorial
0:02
and in this tutorial we will model this
0:04
uh slotted guide in frecad as you can
0:08
see that I have already did it and I
0:10
will show you from the scratch how you
0:12
can do the same if you want to learn
0:15
free from the scratch then you can buy
0:18
my complete free course from zero to
0:21
expert this course also available on
0:24
Udemy but uh problem is that uh UDMI
0:28
only give me the
0:30
37% of a course selling you can see here
0:34
user had paid $15 but I have only got $5
0:41
if you wanted to see the review of my
0:43
course you can go to the Udemy and s
0:47
search for the free CAD and you will see
0:50
my course complete free CAD course from
0:52
zero to expert and this course is took
0:55
by the more than 2,000 students and I
0:59
have got the rating of a
1:02
4.1 for the demo lectures you can expand
1:05
it and uh see the demo lectures and the
1:10
course structure but I will uh request
1:13
you if you found my course interesting
1:16
and the reviews of the other student on
1:20
Udemy then I would request you to buy my
1:25
course from the my coffee shops because
1:30
if you buy from here it will help me a
1:32
lot
1:34
so once you buy my course you will be
1:37
redirected to the Google drive and here
1:40
is the my course complete free course
1:43
from zero to expert go inside and uh the
1:48
sections I have shown you on my kofi
1:53
shop page so exactly same lectures under
1:57
the section is created for example
2:01
section one is a introductions to free
2:04
1.0 and what is new in a freecad 1.0 so
2:08
if you go to the section one so there
2:11
are the 18 lectures and if you go inside
2:15
of the sections one you will find the 18
2:18
lecture total and once you go to the
2:21
lecture one you will find a video file
2:24
which you can download to your system
2:28
and you can watch it and this course is
2:32
uh updated on a equal interval of a time
2:35
once the new feature is came and uh once
2:38
you purchase the course you have the
2:41
lifetime access to the course and in the
2:45
case of any doubt any query you can mail
2:48
me at admin
2:51
ratemnexus.com you can find my course
2:54
link on my YouTube channel you can see
2:57
the course link and uh you can also find
3:00
my Kofi course page link on uh pin
3:04
comments and uh video
3:07
descriptions so I will close this file
3:09
and create a new file and create a body
3:13
and I will on my plane by pressing the
3:16
space bar and now we will read our uh
3:23
drawing if you see our drawing there is
3:26
a plate of 10 mm and this will be our
3:31
base feature so we will select exit
3:34
plane and click on the
3:37
sketch go to the model tab and of the
3:41
origin now here is a R25 and here is the
3:48
R50 so I
3:50
will keep my center here
3:54
and I create a
3:57
circle here and one circle at
4:02
here now I will select
4:05
the diameter and I will give it
4:09
50 because it is R25 and this one will
4:13
be R
4:16
100 and now center to center distance is
4:19
a 95 so I will select the vertical
4:22
dimension select this and this and give
4:26
the
4:30
95 and we will connect these two with a
4:35
threepoint arc so we will select
4:37
threepoint arc select this
4:41
this and this and
4:46
this and we will add the tangency
4:49
relation say
4:51
tangent select this and this say
4:55
tangent similarly
4:58
here
5:00
tangent and
5:05
tangent
5:09
now we will give the horizontal
5:12
relation select this point and this
5:14
point and add a horizontal relation
5:17
select this and this and add the
5:20
horizontal relation now our sketch is
5:23
fully constrained we will select the
5:25
trim
5:27
tool and trim
5:30
it
5:32
now we will come out of the
5:36
sketch place to the isometric view
5:39
select the sketch click on the pad and
5:43
pad dimension is of 10 mm click on
5:46
okay
5:48
now we will create this slot for this we
5:52
will select this face and click on the
5:54
sketch and we will click on project
5:57
geometry and project this outer edge
6:00
click on the
6:04
slot and this slots width is 22 so
6:08
select these two points and add the
6:12
dimension of a 22 center to center
6:15
distance is 45 so select it and
6:19
add 45
6:22
dimension click on
6:24
close click on cut and say through all
6:29
say
6:32
okay now we will add this boss
6:36
feature we will select this face and
6:39
click on the sketch
6:42
click on project
6:43
geometry project the outer
6:47
edge and this is of diameter 50 so
6:52
select the
6:54
circle and create a
6:57
circle and also create one more circle
7:01
outer is a 50 so select it and give 50
7:06
inner one is a 31.8
7:10
8 now move the
7:13
dimensions click on
7:15
close now click on the pad and pad
7:19
distance is of
7:22
50 click on
7:25
okay now we will create this cut for
7:30
this we will select the face and click
7:33
on the
7:34
sketch and now we will project this
7:38
outer
7:39
diameter and then we select a
7:42
rectangle we create a
7:45
rectangle and this is of a 7.1 so we
7:49
will select the line and add the
7:51
dimension
7:56
7.1 and again select vertical
8:02
dimension
8:03
7.1 / by
8:08
2 now we will constrain the length so
8:12
here we will use the symmetricity
8:15
constraint and first we will make this
8:28
symmetric select this point this point
8:31
and this axis and now we will give a
8:36
very rough dimension let's say 70 mm
8:41
so it is fully
8:43
constrained now we will close it we will
8:47
click on the cut and cut depth is of 12
8:51
mm click on
8:54
okay and
8:56
now we will create this
8:59
hole for this we will select this face
9:03
and uh click on the
9:06
sketch now we will project the outer
9:08
geometry
9:11
so that we get a
9:13
center select the
9:15
circle create a
9:17
circle so here PCD diameter is a
9:21
38 so we will select the
9:24
diameter here is given R38 so we will
9:28
give 38 ult*
9:31
2 which is
9:33
76 then we will select it and make it
9:37
construction
9:39
now we create our two
9:42
circle one
9:45
here and one on this
9:47
axis now we select the circle point and
9:50
our PCD circle and give the coincidence
9:55
constraint and from here to this center
9:58
we will give the vertical distance of
10:01
uh 95
10:07
or instead of uh giving this
10:10
95 we can make it horizontal relation
10:15
because this is also at
10:17
95 and we will give this and this
10:21
equal and this is of five holes of D 10
10:26
so we will give the 10 mm
10:31
now there is a one more
10:34
hole which is at a 45° so we will select
10:39
a line
10:40
tool create a
10:43
line and create one more line
10:46
here and I will make both as a
10:51
construction and go to the angular and
10:54
give the angle of uh 45
10:59
now again I will select the circle and
11:02
create a
11:03
circle select the
11:06
diameter or instead of a
11:09
diameter I can make it equal select this
11:12
and
11:13
this and give the
11:15
equal now close it select the sketch
11:20
click on extrude cut say through all
11:25
now there are the three holes but here
11:28
10 holes of Dia 5 so we will mirror it
11:32
for this we will go to the mirror click
11:35
on the mirror and here we will select
11:38
this our pocket 002 which is a
11:43
hole click on
11:45
okay
11:47
and we'll switch to the isometric so
11:51
here we will select the plane Y
11:55
Z because we want to mirror about it so
11:59
you can see that hole is mirror click on
12:04
okay so this is how we have modeled the
12:08
slotted guide in freead and uh this is
12:12
all about this tutorial thank you for
12:14
watching and thank you for your valuable
12:17
time heat
