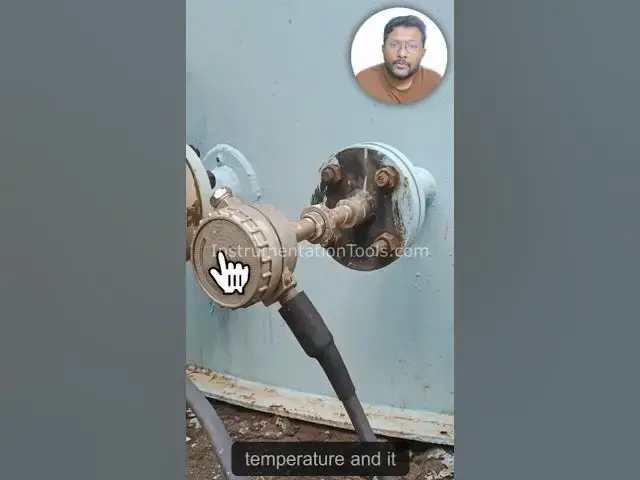

If you see here, this is a tank. On the
0:03
tank, we have one RTD and this is
0:06
thermmo and this is RTD resistance
0:09
temperature detector for measuring the
0:12
temperature and it provides output in
0:16
the form of resistance
0:18
and this is connected to a transmitter.
0:21
So this is temperature element or
0:24
temperature sensor and then it is
0:27
connected to the transmitter. Let's see
0:30
this is the RTD
0:32
right your most common temperature
0:36
sensing element. So this is connected to
0:39
a transmitter. So this is the
0:42
transmitter. So this is the cable. See
0:45
this is the cable coming from the
0:48
temperature element and it is connected
0:50
to a transmitter.
0:52
This transmitter receives this
0:55
resistance as input from the RTD and it
1:00
provides equivalent 4 to 20 millia
1:03
signal to the DCS system. Mostly these
1:07
are two wire instruments. Remember that.
1:10
See this is our sensor RTD and from the
1:14
RTD one cable is there and it is
1:17
connected to a transmitter. This is the
1:20
transmitter and from the transmitter
1:22
another cable will be there. It will
1:24
connected to a DCS system distributed
1:28
control system. These are two wire
1:31
instruments. So this uh cable will carry
1:34
the power to the transmitter. At the
1:36
same time at the same cable carries the
1:40
signal to a DCS system. The signal is in
1:43
the form of loop current 4 to 20 millia
1:46
signal. Remember that.
1:50
So this is the most common installation
1:52
in an industry for measuring a
1:54
temperature.
1:56
We have one temperature element or
1:59
sensor and then we have one transmitter.
2:05
