0:00
So, your check engine light just came on
0:01

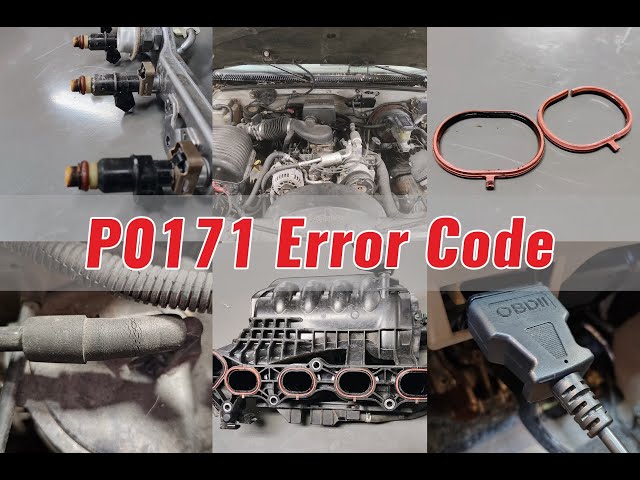

and you pulled a P 0171 or a P 0174
0:05
code, huh? Yeah, those two usually mean
0:07
your engine's running too lean.
0:09
Basically, it's getting too much air and
0:11
not enough fuel. Hey, I'm Tom and
0:13
welcome back to Car Justified. I'm a
0:15
mechanic who's been elbow deep in Audi's
0:17
and Volkswagens for way too many years,
0:18
but I still love this stuff, and I'm
0:20
here to help you fix it yourself without
0:22
getting ripped off. All right, so P 0171
0:28
These codes pop up a lot on VWs and
0:30
Audi's, especially the ones with
0:32
turbocharged engines. It's almost always
0:34
something small causing a big headache.
0:36
But don't worry, we're going to break it
0:37
down step by step. And I'll even show
0:39
you how a simple smoke test can make
0:40
your life 10 times easier. Now, before
0:43
you go swapping parts or spending a
0:45
fortune, the first thing you want to
0:46
know is these codes usually mean there's
0:48
a vacuum leak somewhere. And trust me,
0:51
even a tiny crack in a hose can throw
0:53
everything off. First tip, check your
0:56
intake hoses and vacuum lines. Pop that
0:59
hood and start looking for anything that
1:00
looks cracked, brittle, or disconnected.
1:03
Don't forget to tug on the connections a
1:04
little. I've seen hoses that look fine
1:06
until you barely touch them and bam,
1:08
they split wide open. One common spot,
1:11
that PCV system. That's the positive
1:13
crankase ventilation valve. On a lot of
1:15
Audi's and VWs, especially the 2.0
1:18
turbos, the PCV valve loves to fail. It
1:21
can create a vacuum leak and mess with
1:23
fuel trim at the same time. If your
1:25
engine's whistling like a teac kettle or
1:27
idling rough, that could be it. Yep,
1:29
that's usually the culprit. Next up, the
1:32
mass air flow sensor or MF for short. If
1:35
it's dirty or faulty, it sends the wrong
1:37
data to your ECU. That's the engine
1:39
control unit, and that can trigger those
1:41
lean codes. Just pull it out and give it
1:43
a clean with some proper MAF cleaner.
1:45
Don't go poking it with a screwdriver or
1:47
anything, though. Those sensors are
1:49
delicate, like grandma's china. Okay,
1:52
but here's where the magic happens.
1:54
Smoke testing. This is hands down the
1:56
best way to find vacuum leaks, and it's
1:58
easier than you think. You don't need a
1:59
$1,000 machine, either. You can grab a
2:01
cheap smoke tester online, or even build
2:03
one yourself with a metal can, some baby
2:05
oil, and a little air pump. I might do a
2:07
video on that if you guys are
2:08
interested. All you do is connect the
2:10
smoke tester to your intake system,
2:12
usually where the air filter goes, and
2:15
lightly pressurize it. Then just watch
2:18
anywhere the smoke starts leaking out.
2:20
Bingo. You found your problem. I had a
2:23
buddy with an Audi A4 that kept throwing
2:25
that P 0171 code. We smoke tested it and
2:29
found a teeny tiny split in the hose
2:31
going to the brake booster. Replaced it
2:33
for 15 bucks and the light's been off
2:35
ever since. Another one to check is the
2:37
intake manifold gasket. Over time, that
2:40
rubber can get hard and start leaking
2:41
around the edges. The smoke test will
2:43
show it clear as day. If you see smoke
2:46
puffing out around the intake, you know
2:47
what's up. Now, let's not forget the
2:50
fuel system. A weak fuel pump or a
2:52
clogged filter can also cause a lean
2:54
condition. Not as common, but if you've
2:57
ruled out all the vacuum stuff and your
2:58
fuel trims are still way off, you might
3:01
want to test the fuel pressure next. All
3:03
right, quick recap. If you've got a
3:05
P0171 or P0174 on your VW or Audi, start
3:10
simple. Check your vacuum lines, look at
3:12
the PCV system, clean the MF sensor, and
3:14
then run a smoke test to hunt down any
3:16
leaks. It's way cheaper than throwing
3:18
parts at it, and honestly, kind of fun
3:20
in a weird, nerdy way. If this helped
3:22
you out or saved you a trip to the
3:24
dealership, go ahead and hit that like
3:26
button and subscribe if you want more
3:28
nononsense car fixes from yours truly.
3:30
And hey, if you've got a weird issue or
3:33
you're stuck, drop it in the comments. I
3:35
read them and I'm happy to help when I
3:36
can. Thanks for watching Car Justify.
3:39
I'm Tom and I'll see you next time with
3:41
more car stuff that actually makes
