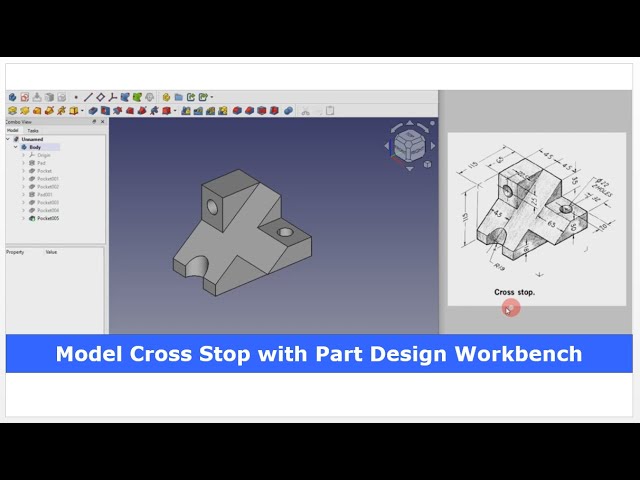

Model Cross Stop with FreeCAD Part Design Workbench | FreeCAD Tutorial | 3D Modeling | Mechnexus |
May 14, 2025
#freecad #freecadtutorial #learnFreeAD In this video I have explained How to Model Cross Stop with FreeCAD Part Design Workbench. ▶️ Get my Complete FreeCAD Course : From Zero to Expert ! https://ko-fi.com/s/1ab4385434 ▶️ Join my channel membership and keep supporting my work: https://www.youtube.com/channel/UCcn6z2whMaFu-_LDsEXCfVA/join ▶️ Visit my website for more info on FreeCAD-: https://mechnexus.com/ ▶️ Download Source File of Tutorial-: https://mechnexus.com/mechnexus-youtube-tutorial-source-file/ ▶️ Buy Me a Coffee I am very grateful that you watch my videos and I am constantly trying to improve the quality of the videos on this channel. If you'd like to help me do this, please consider supporting me so that I can to continue to produce content for your enjoyment. 👉 Help support this channel by buying me a coffee: https://ko-fi.com/mechnexus
View Video Transcript
0:00
hello friends welcome to free tutorial
0:03
and in this tutorial we will model this
0:06
crosstop with the help of a part design
0:08
workbench in frecat and we have the
0:11
isometric drawing of this crosstop and
0:15
we will use the part design workbench if
0:17
you want to learn free from the scratch
0:20
then you can buy my complete free course
0:23
from zero to expert this course also
0:26
available on UDMI but uh problem is that
0:30
uh UDMI only give me the
0:33
37% of a course selling you can see here
0:37
user had paid $15 but I have only got $5
0:44
if you wanted to see the review of my
0:46
course you can go to the Udemy and s
0:50
search for the free CAD and you will see
0:53
my course complete free course from zero
0:56
to expert and this course is took by the
0:59
more than 2,000 students and I have got
1:03
the rating of a
1:05
4.1 for the demo lectures you can expand
1:09
it and uh see the demo lectures and the
1:13
course structure but I will uh request
1:16
you if you found my course interesting
1:20
and the reviews of the other student on
1:24
Udemy then I would request you to buy my
1:28
course from the my coffee shops because
1:33
if you buy from here it will help me a
1:35
lot
1:37
so once you buy my course you will be
1:40
redirected to the Google drive and here
1:43
is the my course complete free course
1:46
from zero to expert go inside and uh the
1:51
sections I have shown you on my kofi
1:56
shop page so exactly same lectures under
2:00
the section is created for example
2:04
section one is a introductions to free
2:07
1.0 and what is new in a freecad 1.0 so
2:11
if you go to the section one so there
2:14
are the 18 lectures and if you go inside
2:18
of the sections one you will find the 18
2:22
lecture total and once you go to the
2:24
lecture one you will find a video file
2:28
which you can download to your system
2:31
and you can watch it and this course is
2:35
uh updated on a equal interval of a time
2:38
once the new feature is came and uh once
2:41
you purchase the course you have the
2:44
lifetime access to the course and in the
2:48
case of any doubt any query you can mail
2:51
me at admin
2:54
ratemnexus.com you can find my course
2:57
link on my YouTube channel you can see
3:00
the course link and uh you can also find
3:03
my Kofi course page link on uh pin
3:07
comments and uh video descriptions so
3:11
create a new
3:12
file and create a
3:15
body create a
3:17
sketch and we will select this front
3:21
plane and we will create a twopoint
3:23
rectangle
3:26
simply and total height is a 115 so we
3:30
will select this line and add the
3:32
vertical dimension of
3:35
115 and
3:39
total
3:41
length we will
3:44
add by adding the dimension which we
3:48
will read from our drawing so here is a
3:50
45 45 and
3:52
65 so 45 + 45 + 65
4:01
Now we will close the sketch and uh
4:05
here extrusion length is a 115 so we
4:09
will select the sketch click on extrude
4:12
and give
4:14
115 and click on okay so this is the
4:18
total area of our cross top and now we
4:22
will select the right face and click on
4:25
the sketch
4:29
now we will click on project
4:32
geometry we will project all the
4:37
geometry and now we will click on the
4:39
line
4:40
tool and create a line now if we can see
4:45
here this is the 18 mm so we will select
4:48
these two points and add the dimension
4:51
of uh 18 mm
4:56
and now I will completely close the
5:00
profile we want to remove the material
5:03
at this portion so upper side we will
5:06
close
5:11
it now we
5:13
will switch to the
5:16
isometric so
5:19
here model got rotated so we will delete
5:23
this sketch and uh we will again create
5:27
the sketch and uh this
5:30
time we will create our sketch in
5:32
isometric view so that we get the
5:34
perfect orientation as per our model so
5:38
we
5:39
will project all the geometries
5:50
now we will select the line
5:53
tool and join these
5:57
two
6:00
now we will add the horizontal dimension
6:03
of 18
6:07
mm vertical
6:10
dimension so in this case it is a
6:12
horizontal
6:15
one 18 mm and now we will close the top
6:19
portion so we will select the line
6:31
tool so we will select this point and
6:35
this line at the coincidence so it is
6:38
fully
6:39
constrained now we will select the
6:42
sketch and uh completely remove the
6:45
material click on the
6:48
pocket and say true to
6:53
all
6:59
now if you see here this is the 40 45 is
7:06
90 now we will create the
7:11
cut at this side at the top and the
7:14
bottom so for this we will select the
7:17
face and create a
7:21
sketch and I will switch to the
7:23
isometric and now I will project these
7:26
two
7:27
edges so click on convert geometry
7:31
option and project these
7:34
two and now select the line
7:41
tool now make this line horizontal
7:45
sorry in this case it will be vertical
7:48
select the
7:51
line now from the top it is 35 so I will
7:56
select this point and this point
8:03
and add 35
8:08
dimension and now we will uh close the
8:12
profile and give the cut depth of 65 so
8:16
select on
8:23
line now close it now select the sketch
8:27
click on the pocket and give the
8:30
distance of 65
8:37
now we will make the cut at the bottom
8:40
side so we will again select the right
8:43
face and click on the
8:46
sketch switch to the isometric
8:50
view
8:52
now if you see here 35 + 30 is uh
8:58
65 from this top points
9:03
but we will give the 30 dimension from
9:06
here for this we will
9:10
project outer
9:12
edge and
9:16
now I will also project this one
9:22
now I will create a
9:27
line and I will add the vertical height
9:30
of
9:34
30 select this point and this
9:37
point and give the
9:41
30 now we will completely remove the
9:46
material so we will rotate our model and
9:48
also project this bottom edge
9:55
and
9:56
now I will uh close the
10:00
profile by joining the projected
10:12
points click on close and the cut depth
10:16
is a 65 to click on the pocket and
10:19
provide the distance of
10:24
65 now we will uh add the material here
10:29
like a triangular block shape for this
10:32
we will rotate our model select the back
10:35
face and create on the sketch and now
10:38
switch to the
10:41
isometric and now we will project this
10:48
age and
10:50
now we will uh draw the triangle
11:00
approximately and we will close our
11:03
triangle now we will switch to the
11:07
isometric
11:09
and we will rotate to the back side and
11:12
make this face
11:15
normal now we will give the dimension as
11:18
it is a 65 so we will select the line
11:22
and add the
11:26
65 and
11:28
now we will close our sketch
11:32
switch to the
11:34
isometric select the sketch and click on
11:37
the
11:38
pad and from here select on
11:42
reverse and uh thickness of his 45 so we
11:47
will add the 45
11:49
dimension click on
11:53
okay
11:55
now we will create the whole feature so
11:58
first we will create on this triangular
11:59
block
12:02
so here is
12:03
a two holes of DI 22 so we can use the
12:08
whole tool or we we can also use the cut
12:11
option so I will use the cut
12:15
option switch to the
12:18
isometric and now I will select the
12:22
circle and create a
12:25
circle and I will project this uh
12:28
horizontal and
12:34
vertical and now I will select the
12:38
dimension option and add the dimension
12:42
so vertical is is
12:49
25 and from the
12:53
horizontal it is uh
12:57
22.5 and uh we will select the diameter
13:00
option and give it a diameter of
13:05
22 click on close select the sketch
13:08
click on the pocket tool and say true
13:11
all click on
13:14
okay
13:16
now we will make this hole on this face
13:19
so select the face and click on the
13:22
sketch click on the
13:27
isometric and uh click on the circle
13:33
option and give it a diameter of 22
13:40
and we will project this
13:42
edge horizontal and
13:46
vertical this and this i will select
13:49
this point and this point at a vertical
13:52
dimension of
13:55
20 and horizontal dimension
13:59
of 32
14:09
now I will close it select the sketch
14:12
and click on the cut and I will say true
14:18
all
14:20
now we will make a hole here as well it
14:25
is a half hole which is of a diameter 38
14:29
so we will select the bottom face and
14:32
click on the sketch
14:34
click on the isometric
14:38
view and
14:42
now we will project this
14:47
age and now we will create a
14:52
circle as it is of R90 so we will get a
14:58
diameter
15:01
38 and from the age it is 45 so we will
15:05
select this
15:07
point or I will make it this face
15:14
normal i will select horizontal
15:30
dimension which is of
15:34
45 click on close
15:37
switch to the
15:39
isometric and click on the pocket tool
15:43
and from here say through
15:47
all so here we have completed our model
15:53
cross stop this tutorial is designed for
15:56
the beginner user of a free those who
15:58
have just started learning the part
16:00
modeling in freead so this is all about
16:03
this tutorial how to model this cross
16:06
drop with the help of a part design in
16:08
free thank you for watching and thank
16:10
you for your valuable time
