Hello friends welcome to Solid Works
0:03
tutorial and in this tutorial we will
0:05
learn how we can customize the mouse
0:08
guesture you can also visit my website
0:11
macn nexus.com and you can visit this
0:15
solid works tutorials tab where I have
0:18
written so many tutorials on solid works
0:22
where you can follow the step by step
0:28
parts if you like my method of teaching
0:30
then you can also support me on kofi.com
0:33
you can buy me a cup of coffee your
0:37
small support will help these channels
0:40
to grow and it will motivate me to
0:42
create more awesome content on solid
0:45
works so let's come back to our tutorial
0:49
in our previous tutorial we have learned
0:51
how to set keyboard shortcut in solid
0:55
works like the keyboard shortcuts Mouse
0:58
gestures are also Al very
1:03
to save your time if you practice using
1:08
the mouse gesture then you can do very
1:11
fast modeling assembly and detailing in
1:15
solid works so let's start how we can
1:18
customize the mouse gesture for this I
1:22
will create a new file and I create a
1:28
part and we will go to to the customize
1:31

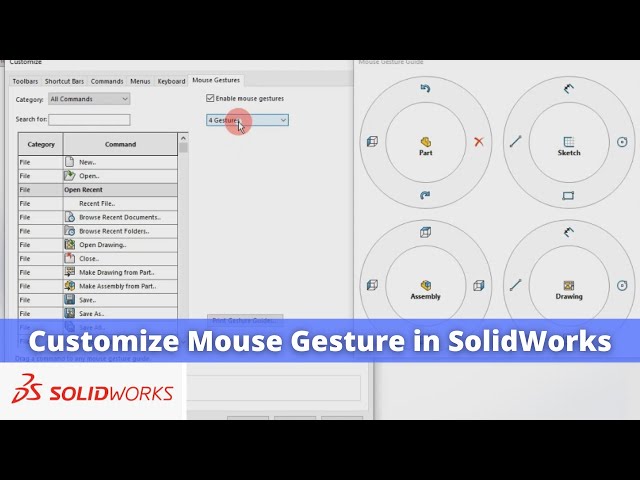

options and here on the customize
1:33
sections you will get a options known as
1:37
a mouse gesture so in Mouse gestures you
1:41
will see here the four type of a
1:44
gestures for part for Sketcher for
1:49
assemblies here you can set the number
1:52
of a gesture you want for example I want
1:56
four gestures so I can change it now you
1:59
can see that uh gesture changed to four
2:03
now let's change it to
2:07
the8 we can also make it to the
2:11
12 so here we will see the Sketcher vure
2:17
now we will close it by pressing the
2:21
okay now we will select this front plane
2:25
and create a sketch now if you click on
2:28
the left Mouse button you will not get
2:30
the mouse gesture but when you click on
2:33
the right button of your mouse then you
2:37
will get the gestures for example here
2:41
if I drop on the two two point rectangle
2:44
then I can create a twoo rectangle again
2:48
if I click on the right Mouse button
2:51
then you can see that gesture got
2:53
activated and this time I select the
2:55
circle so you can see that I can create
3:05
sketch now if I drag it by pressing the
3:10
right Mouse button then you can see that
3:12
uh part gestures got activated
3:17
now we will again go to the customize
3:20
option and we can we will see how we can
3:26
guesture let's on a Sketcher I wanted to
3:31
remove this circle and want to add
3:35
options so I will drop
3:38
down and I will search for the rebuild
3:44
options so here is a rebuild just select
3:47
it and uh drop on the circle so you can
3:51
see that uh in the place of a circle we
3:55
options now we will click on okay
4:00
we will edit our sketch and
4:08
this geometry we will select on the trim
4:13
tool click on trim to Clos
4:22
now we will click on the right Mouse
4:24
button and we will click on rebuild so
4:28
you can see that our scale skch got
4:30
rebuilt and we can simply click on
4:34
extrude select our sketch and we can
4:40
it now let's again go to the
4:44
sketch and if it draged then we can see
4:47
that rebuild options here now let's
4:54
customiz go to the mouse
4:56
gesture and instead of this rebuild let
5:03
tools let's add the undo
5:09
option click on okay now we will go to
5:15
Sketcher and if we drag it so we can see
5:21
options so this is how you can customize
5:25
the mouse guesture in solid works it is
5:29
very pretty handy one thing you must
5:32
know that uh part gesture will only get
5:37
activated if you are using the part
5:39
Sketcher gesture will only get activated
5:42
when you are in the Sketchers same
5:44
applicable for the assembly and same for
5:47
the drawing so this is all about this
5:49
tutorial how to customize the mouse
5:52
gesture in solid works thank you for
5:54
watching and thank you for your valuable
